AORE V Series High-Speed Tube Laser

High-speed tube laser for volume work on smaller sections

AORE

Round tube 8 to 360 mm
Length 6500 mm
Power 1.5 to 12 kW
Acceleration up to 2 G

The V Series is a two-chuck tube laser built for cycle time on smaller section. Acceleration to 2 G and a 200 r/min chuck on the V12 keep start-stop moves short, and four sizes cover round tube from 8 mm to 360 mm at lengths up to 6500 mm.

Get a quote

Key features

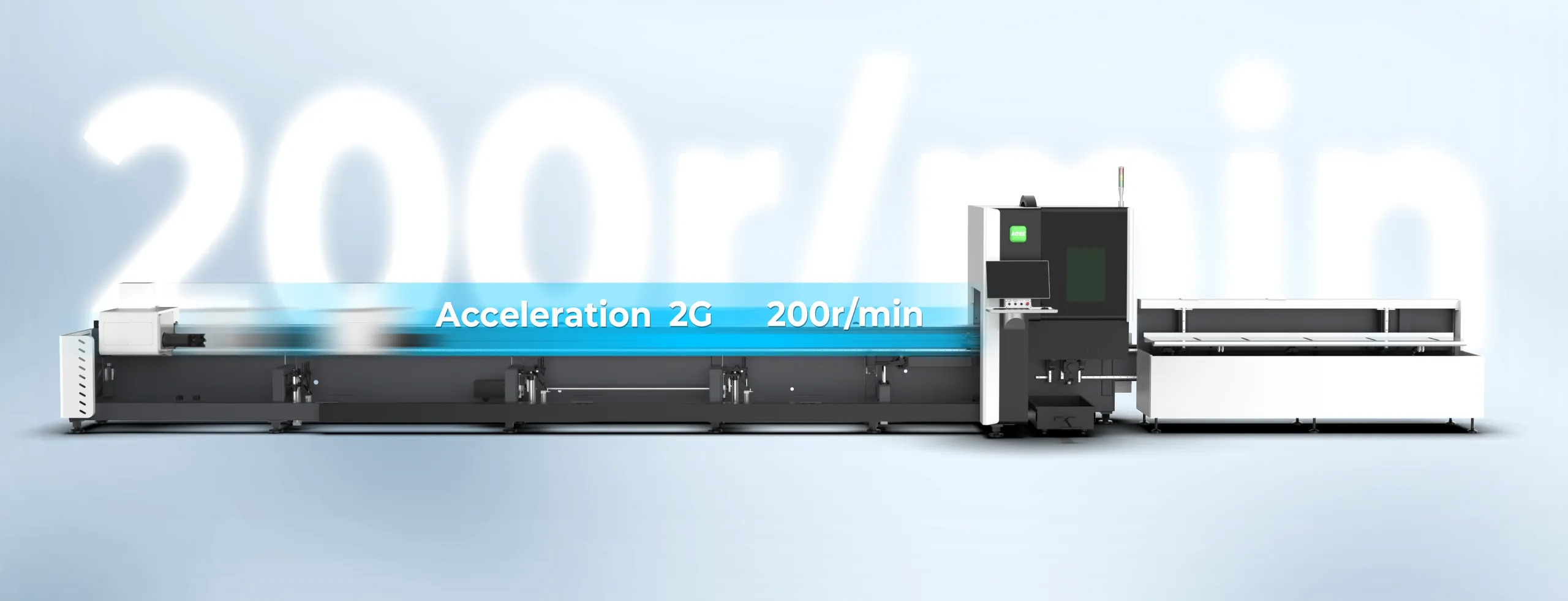

2 G acceleration and 200 r/min chuck

Axis acceleration up to 2 G and chuck rotation up to 200 r/min shorten the start-stop moves that make up most of a tube cutting cycle. On short repetitive parts this sets the parts-per-shift figure more than cutting speed does.

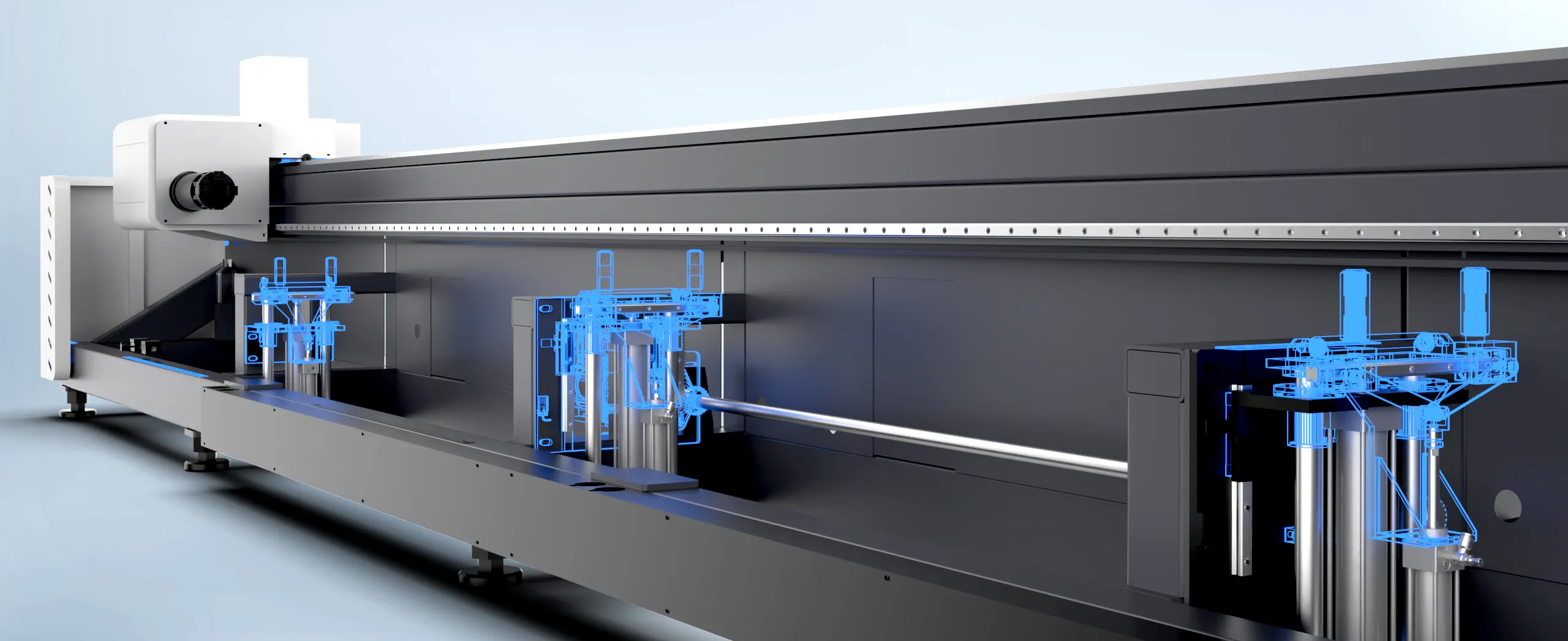

Dual adaptive and concave roller supports

Adaptive and concave rollers support the tube either side of the cut and hold it against movement while the chuck rotates at speed. Cut quality and hole position stay consistent on thin-wall section at full rpm.

Continuous support from loading to unloading

Support follows the tube through loading, cutting and unloading, so a long length is carried for the whole cycle and never only in the cutting zone. Accuracy on the last part off a 6.5 m bar matches the first.

Front-shift chuck for short remnant

The front chuck advances on servo drive so the final part is cut close to the end of the bar. Remnant length per bar is reduced, and the chuck is not reclamped to reach that position, which lowers chuck wear.

Is the V Series right for your workshop?

Tell us the sections you cut, the wall thicknesses and how many lengths a week. We will confirm which of the three sizes suits and whether automatic loading is worth it.

Talk to a Tube Laser Specialist

Specifications

Model	V12	V16	V24-65	V36-65
Laser power	1.5 to 3 kW	1.5 to 6 kW	1.5 to 6 kW	3 to 12 kW
Round tube	8 to 120 mm	15 to 160 mm	15 to 240 mm	20 to 360 mm
Square tube	8 x 8 to 120 x 120 mm	15 x 15 to 160 x 160 mm	15 x 15 to 240 x 240 mm	20 x 20 to 360 x 360 mm
Tube length	Up to 6500 mm	Up to 6500 mm	Up to 6500 mm	Up to 6500 mm
Max weight per tube	80 kg	150 kg	300 kg	1200 kg
Max air cutting speed	150 m/min	120 m/min	120 m/min	80 m/min
Maximum chuck speed	200 r/min	120 r/min	120 r/min	80 r/min
Maximum acceleration	2 G	1.5 G	1.5 G	0.8 G
Machine size (L x W x H)	9075 x 2400 x 2268 mm	9730 x 2730 x 2080 mm	9730 x 2730 x 2080 mm	10835 x 2950 x 3600 mm

Guarding, loading and unloading are specified to suit the installation. Tell us the sections and volumes you run and we will confirm the model and the automation that fits.

Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
