AORE M Series Three-Chuck Heavy-Duty Tube Laser

Three-chuck heavy-duty tube laser for tube and structural profiles

AORE

6 to 20 kW
Section to 550 mm
12 or 18 m lengths
To 2000 kg a piece

The M Series is a three-chuck heavy-duty tube laser for tube and structural profiles. Three models cover sections from 20 to 550 mm in 12 m lengths, with an 18 m bed available on the M36 and M56, and up to 2000 kg per piece at 6 to 20 kW.

Material is clamped at three points along its length, holding the section straight and vibration-free through the cut. The M Series sits below the four-chuck Z Series in capacity.

Get a quote

Key features

Integrated loading and unloading with servo following support

Loading, pre-loading and servo-driven following supports operate as one continuous cycle. The next length is staged while the current bar is cut, removing idle time between bars.

Three-chuck clamping with material reversal

Three chucks clamp the section along its full length, and the third chuck allows the material to be reversed so both ends are processed. Full-length and segmented cutting are supported without re-handling.

Auto-centring, tube detection and closed-loop control

The control system centres the section, detects its dimensions and adjusts focus under closed-loop control without operator input. Positioning remains consistent across mixed material and varying wall thickness.

Zero tail processing

The three-chuck cutting sequence processes the full length of each bar with no unusable remnant. On sections weighing 500 to 2000 kg per length, the material recovered on every bar is a direct reduction in cost per part.

Two or three chuck switching

The third chuck is held in a standby position when the program does not require it. Short parts are cut on two chucks at higher throughput; long or heavy sections engage all three.

Temperature management, automatic lubrication and optional full enclosure

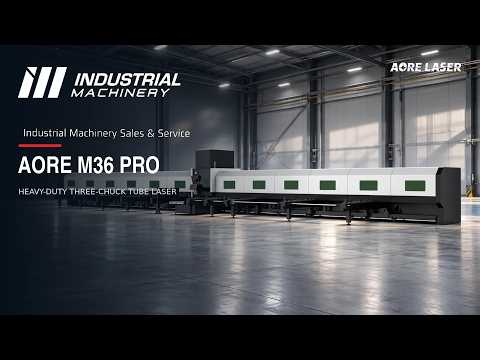

Temperature management and automatic lubrication are built in for continuous operation, with a full enclosure of the cutting area available as an option. Guarding to Australian workplace safety requirements is supplied as standard on every installation.

M Series or Z Series

The M Series covers heavy tube and profile work to 550 mm and 2000 kg per piece. The Z Series adds a fourth chuck for larger diameters and heavier material. Model selection is confirmed against maximum section size, stock lengths and volume at quotation.

Talk to a tube laser specialist

Specifications

Model	M28	M36	M56
Laser power	6 to 12 kW	6 to 20 kW	12 to 20 kW
Round tube	20 to 280 mm	20 to 360 mm	50 to 550 mm
Square tube	20 x 20 to 280 x 280 mm	20 x 20 to 360 x 360 mm	50 x 50 to 550 x 550 mm
Max weight per piece	500 kg	1200 kg	2000 kg
Processing length	12000 mm	12000 or 18000 mm	12000 or 18000 mm
Shortest remaining material	0 mm	0 mm	0 mm
Positioning accuracy	±0.05 mm/m	±0.05 mm/m	±0.05 mm/m
Repeatability	±0.03 mm/m	±0.03 mm/m	±0.03 mm/m
Y-axis maximum speed	115 m/min	90 m/min	60 m/min
Maximum chuck speed	100 r/min	80 r/min	40 r/min
Maximum acceleration	1 G	0.8 G	0.3 G

Maximum acceleration reduces as chuck capacity increases. Where the majority of work is at the smaller end of the range, the M28 delivers higher throughput than the M56 on the same parts. Positioning accuracy is quoted per metre of travel. Guarding is supplied to Australian workplace safety requirements as standard; full enclosure of the cutting area is optional.

Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
