AORE TS Series Three-Chuck Tube Laser
Three-chuck tube laser for heavy structural sections
The TS Series is a three-chuck tube laser for heavy structural and long-length sections. A horizontal bed with a low centre of gravity and multiple support points carries large sections through the cut.
Six models combine 230, 280 and 350 mm chuck capacities with 6, 9 and 12 m beds, at 3 to 12 kW. The model number gives both: the TS12035 takes 12.5 m material with round tube to 350 mm.
Key features

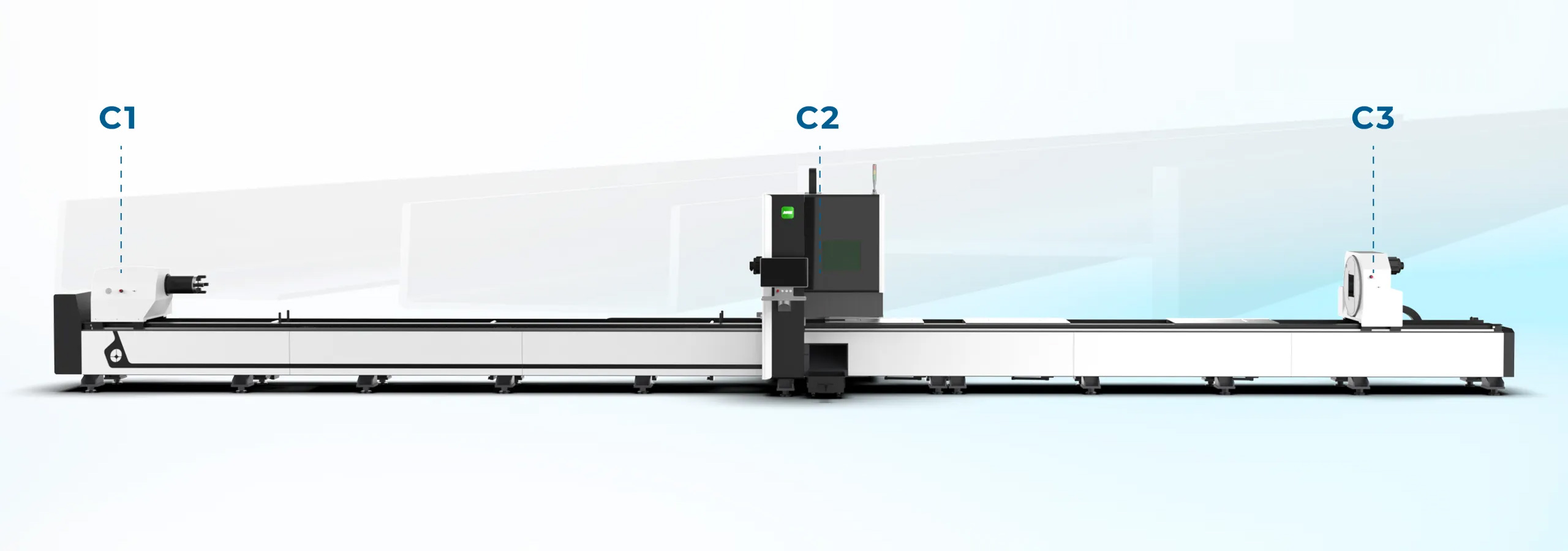

Three movable chucks
Three chucks hold long, heavy and irregular sections through the cut, and all three travel along the bed. The full length is cut out with the final part supported, eliminating the tail remnant.
Multi-point clamping
Clamping at multiple points along the length restrains the section against vibration and deflection during cutting. Cut quality is maintained on long, slender tube where single-point clamping loses accuracy.
Adaptive support with automatic height
Support height adjusts automatically as the tube rotates, in step with the chuck system. Accuracy is held along the full length of the section rather than only adjacent to the chuck.

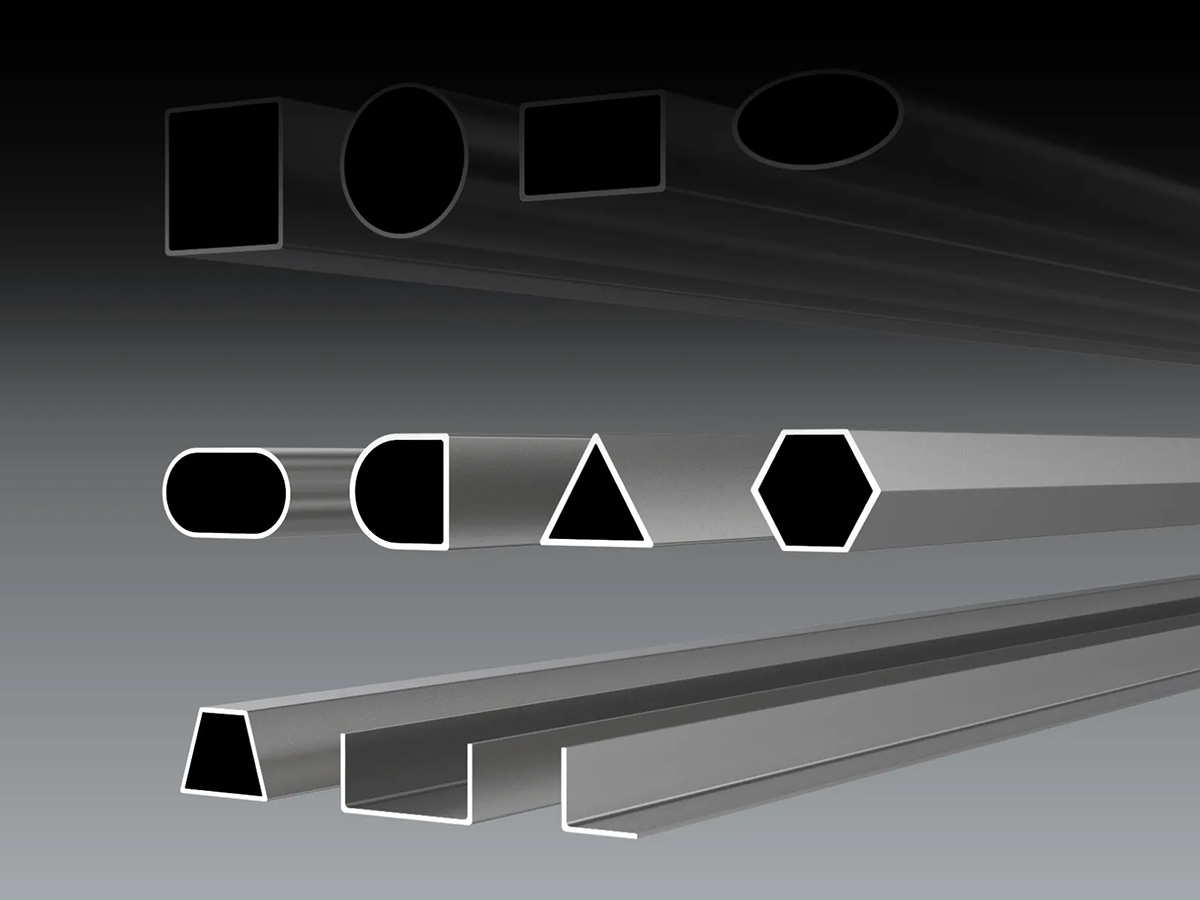

Angle, channel, H-beam and irregular section
The chuck system clamps angle, channel, H-beam and non-standard profiles as well as round tube, SHS and RHS. Mixed structural section work is processed on one machine without dedicated tooling for each profile.
Intelligent control system
Automatic centring, tube detection, autofocus and nesting are executed by the control system rather than set manually by the operator. Setup time is reduced and results are repeatable between operators and shifts.

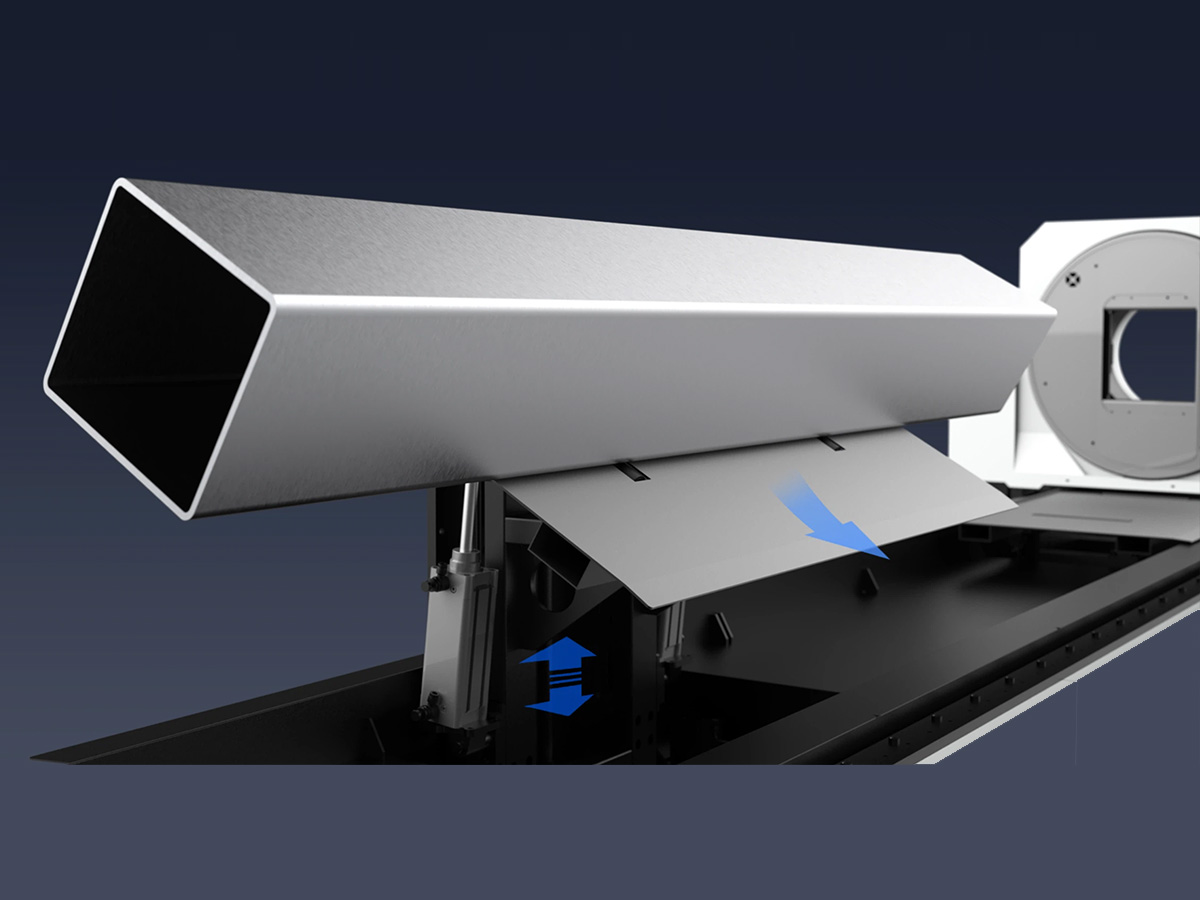

Flip-type unloading
Finished parts are discharged by a dedicated flip-type unloading mechanism rather than falling free from the chuck. Collision damage between parts is prevented, which is significant on long sections and finished surfaces.
Is the TS Series right for your workshop?
Tell us the heaviest sections you process and the lengths they arrive in. We will confirm whether the TS6020 or the TS12035 suits, and what loading the job needs.
Talk to a Tube Laser SpecialistSpecifications
| Model | TS6020 | TS9020 | TS9028 | TS9035 | TS12028 | TS12035 |
|---|---|---|---|---|---|---|
| Laser power | 3 to 20 kW | 3 to 20 kW | 6 to 20 kW | 6 to 20 kW | 6 to 20kW | 6 to 20kW |
| Maximum material length | 6300 mm | 9000 mm | 9000 mm | 9000 mm | 12000 mm | 12500 mm |
| Round tube | 15 to 230 mm | 15 to 230 mm | 20 to 280 mm | 20 to 350 mm | 20 to 280 mm | 20 to 350 mm |
| Square tube | 15 x 15 to 230 x 230 mm | 15 x 15 to 230 x 230 mm | 20 x 20 to 280 x 280 mm | 20 x 20 to 350 x 350 mm | 20 x 20 to 280 x 280 mm | 20 x 20 to 350 x 350 mm |
| Maximum acceleration | 1.5 G | 1.5 G | 1 G | 0.8 G | 1 G | 0.8 G |
Loading, unloading and guarding are specified to the installation. Guarding is supplied to Australian workplace safety requirements as standard; full enclosure of the cutting area is optional. Model and layout are confirmed against section sizes and material lengths at quotation.
Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
