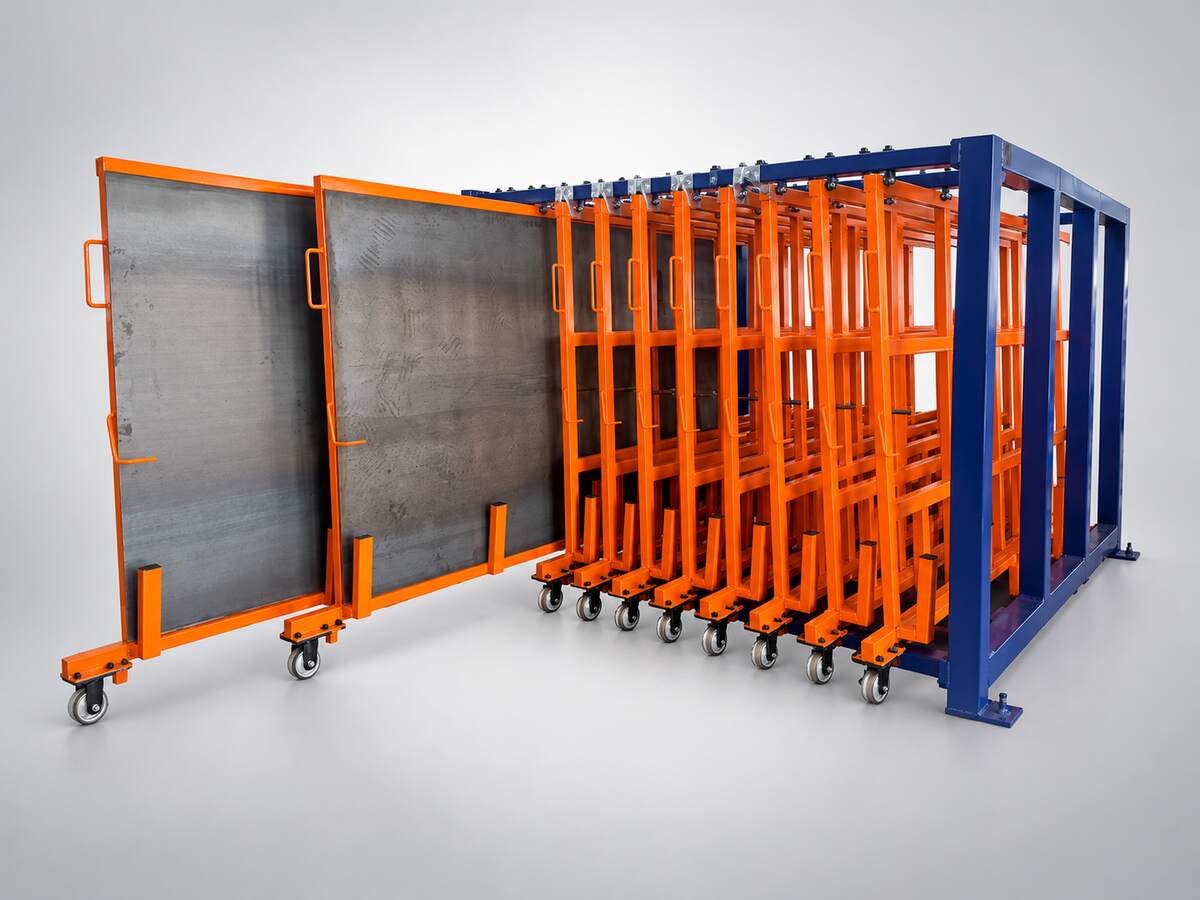

ProStore Vertical Sheet Rack
Vertical pull-out racking for sheets and offcuts
The Vertical Sheet Rack stands sheet on edge in individual pull-out frames rather than stacking it flat. It is built for the material that clutters every fabrication shop: offcuts, part sheets, one-off grades and the remnant nobody wants to dig for. Fifteen layers in a footprint of roughly 2.7 by 1.7 metres, with each frame pulling out so the sheet can be lifted clear without moving anything else.
Key features
Eight or ten grades in a pallet footprint
Standing sheet vertically puts eight or ten separate slots into a footprint a flat stack would fill with one grade. Everything is separated, everything is reachable, and the floor it frees is usually worth more than the rack costs.
Built for the offcuts, not the full sheets
Most racking assumes full sheets of one grade. This is for what is left over: part sheets, remnants, sample material and short-run grades. Giving those a home is usually what stops them being re-cut from new stock because nobody could find them.
Each unit rolls fully out, and one person can do it
Every sliding unit pulls out one hundred per cent, so the sheet comes clear of the rack in full view rather than being half-visible in a stack. The action is light enough for one person, which is the difference between a rack that gets used and one that gets worked around.
Sheet stays flat and unmarked
Leaned against a wall or a rack frame, thin sheet bows and the face gets scratched by whatever is next to it. Held vertically in its own frame it stays flat and the surface stays clean, which matters on stainless and prefinished material.
Safer than the wall it replaces
Sheet stood against a wall is one of the more dangerous things in a workshop. Captive in a frame it cannot slide, fall or be pulled over, and the operator is not reaching behind stacked material to get at it.
Is the ProStore Vertical Sheet Rack right for your workshop?
Tell us how much remnant material you are carrying and the largest sheet you need to store. We will confirm the frame size and how many you need.
Talk to a Storage SpecialistSpecifications
| Storage sheet size | 3000 x 1500 mm | 2440 x 2450 mm |
|---|---|---|
| Loading per slot | 500 kg | 700 kg |
| Number of drawers | 8 | 10 |
| Distance between two layers | 180 mm | 150 mm |
| Operation system | Mechanical | Mechanical |
| Configuration | Front-back or left-right | Front-back or left-right |
Standard build is 3000 x 1500 mm. Smaller frames for 2000 x 1000 and 2500 x 1300 mm are available to order, with a correspondingly smaller footprint.
Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
Gallery
Installed and Supported in Australia
IMS imports direct from the factory and looks after the machine from delivery on.
- Installation and commissioning by IMS technicians
- Operator training on site
- Guarding to Australian workplace safety requirements
- Spare parts and consumables held in Australia
- Service and breakdown support from factory-trained technicians
About ProStore
ProStore Steel Systems is the IMS range of steel storage and material handling equipment — sheet racks, vertical towers, bar and profile storage and fully automated warehouses. Supplied, installed and supported in Australia by Industrial Machinery Sales and Service.
