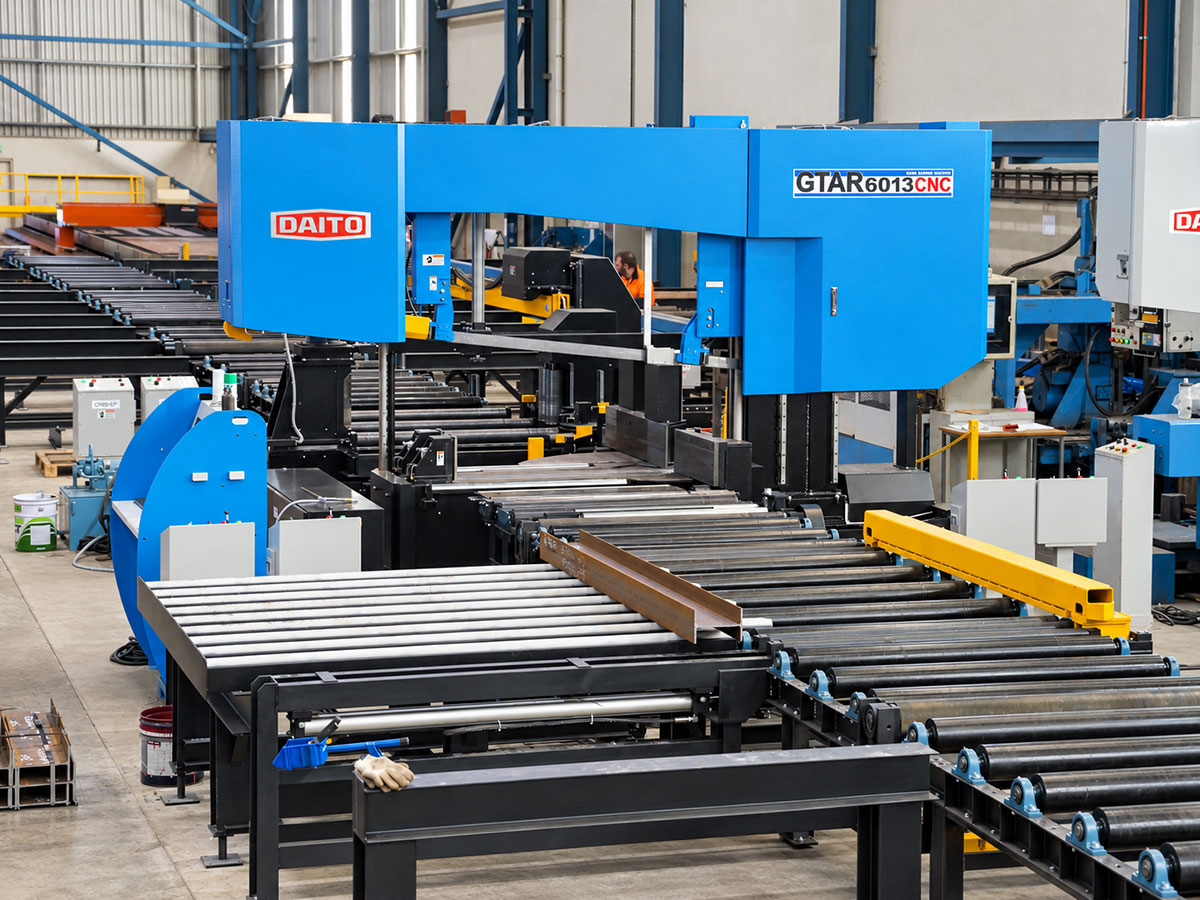

Daito GTAR Saw Beam Line
Saw-only beam line with the same programming and material handling as the CUD / GTR
The Daito GTAR is a saw-only beam line for structural steel work that needs cutting and mitring but no drilling. It combines Daito’s automatic double-mitre bandsaw with the same material handling and production programming as the CUD / GTR drilling and sawing line, without the drilling machine.
Cut lists are imported through DIS II as on a full beam line. Sections are fed by pinch rollers with measuring discs, cut to length and mitre, and cleared by the short-part discharger, giving beam-line automation for cut-only work at a lower investment than a drill line.
Key features
Automatic Double-Mitre Cutting

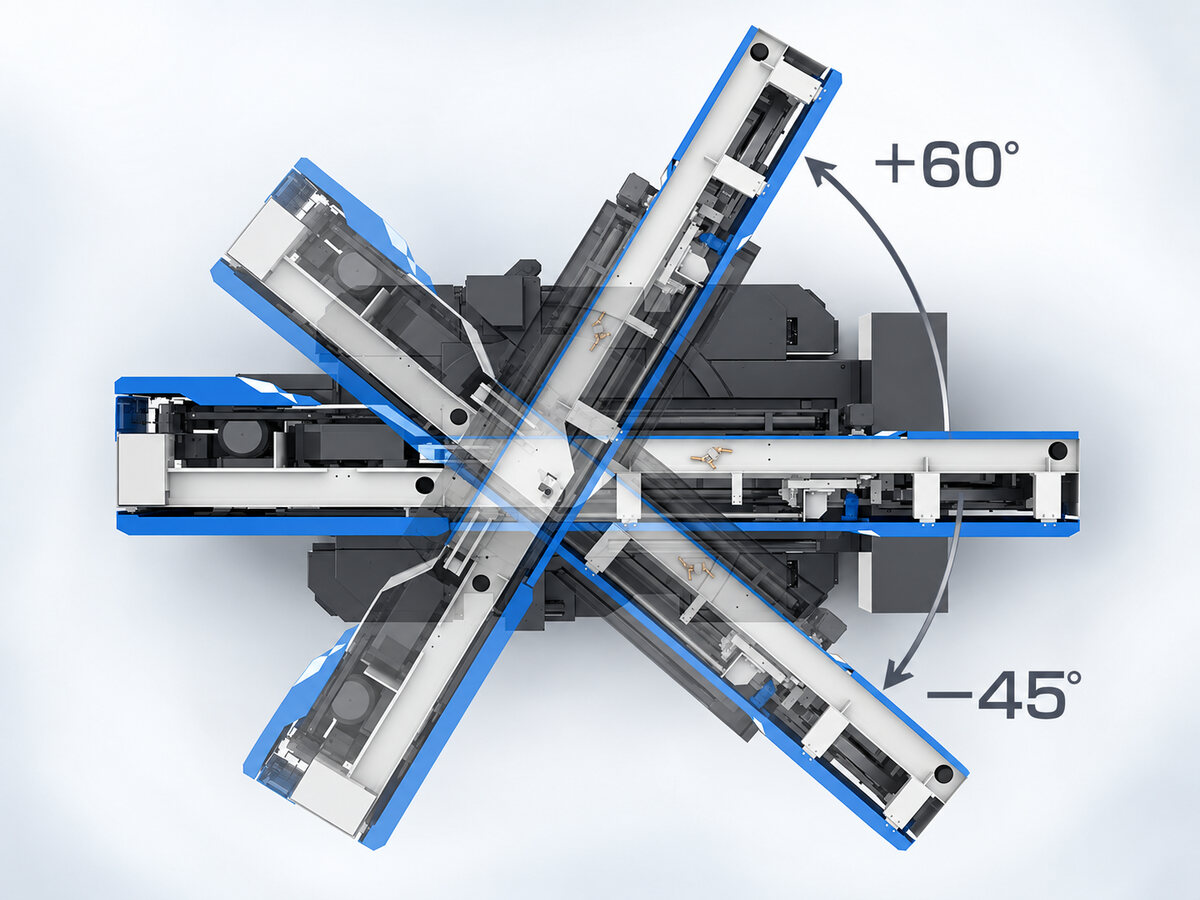

The saw frame rotates automatically for left and right mitre cuts, so opposing mitres are completed without turning the beam. Mitre angles are stored in the cutting program with each length.
6° Inclined Blade with Step-Feed Protection

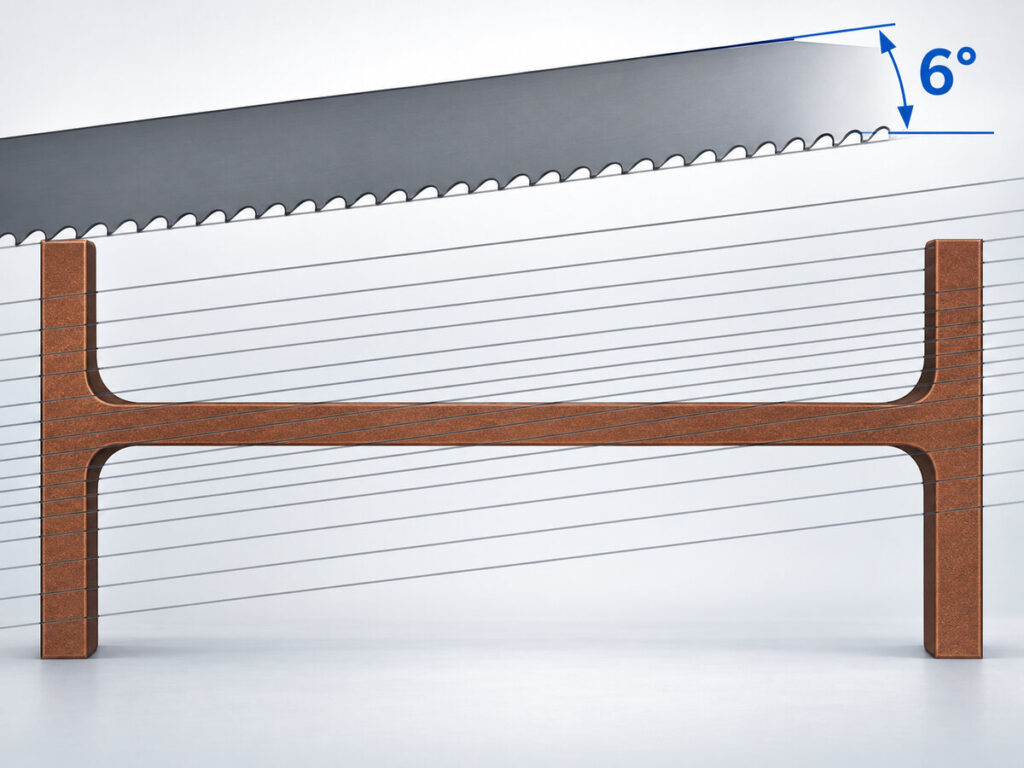

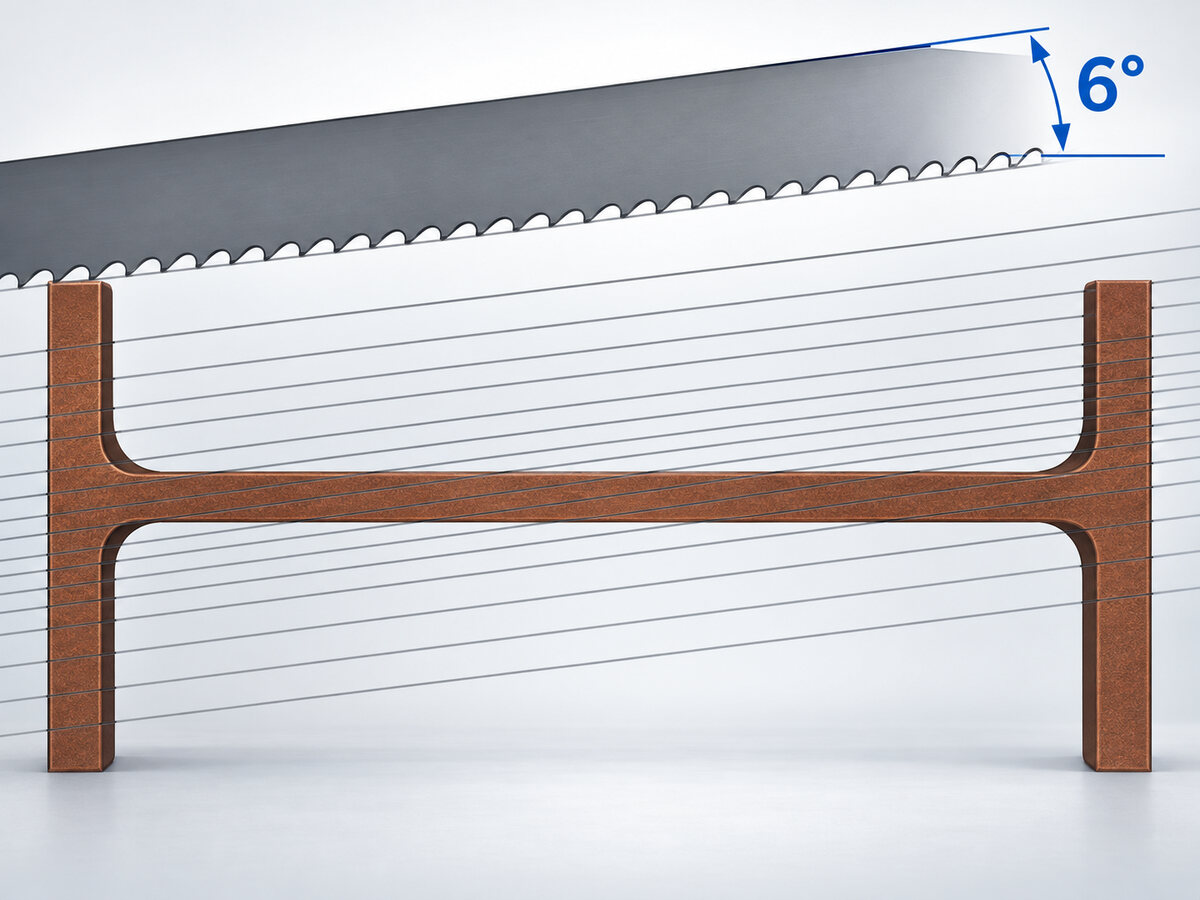

The blade is inclined at 6° so it enters the section progressively, reducing cutting shock and vibration. Daito’s step-feed function relieves the blade when internal stresses begin to close the cut, reducing pinching and premature breakage.
Controlled Material Positioning

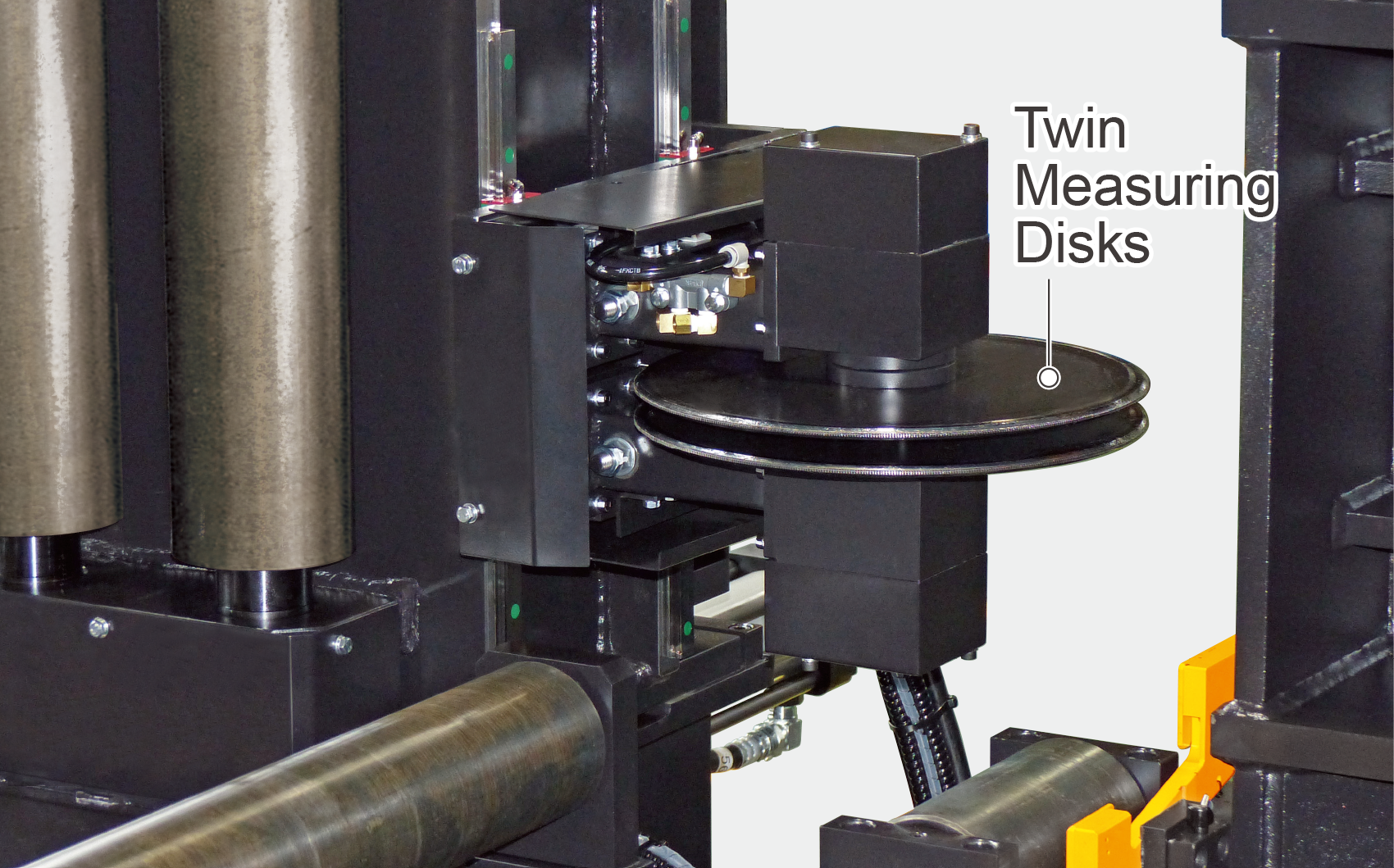

Infeed and outfeed pinch rollers move the section through the saw, with measuring discs tracking material travel. The programmed position is held for each cut while web and flange supports stabilise the material.
Automatic Offcut Handling

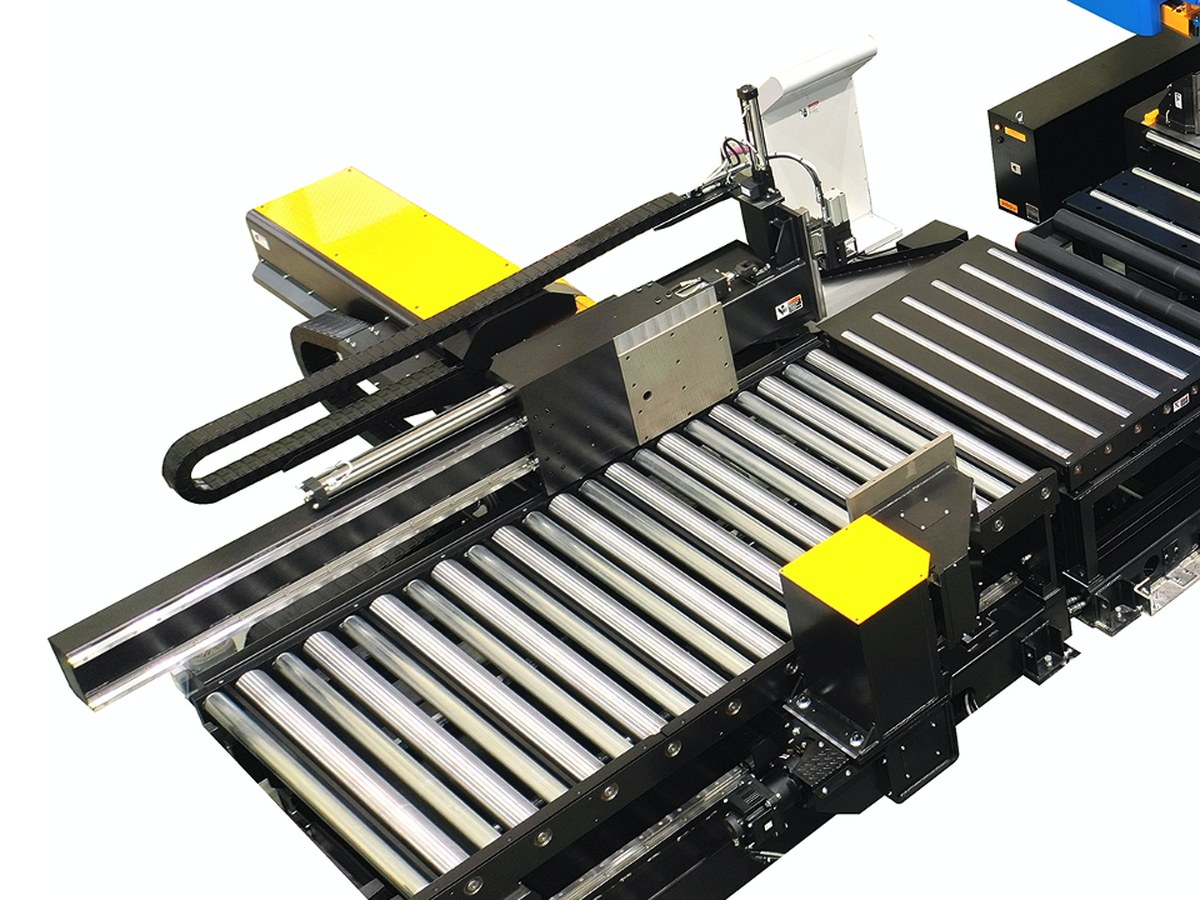

The short-piece discharger removes trim cuts and short offcuts while the line continues operating. The last-cut gripper supports the remaining material through the final cut and reduces manual clearing around the saw.

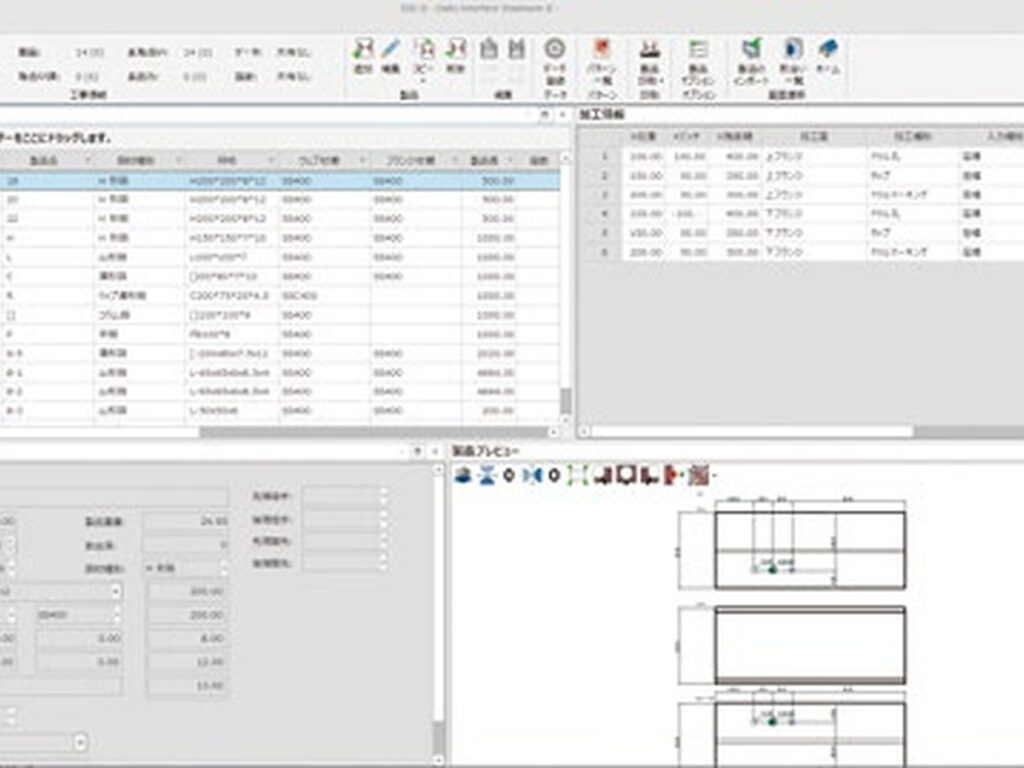

DIS II Programming and Nesting

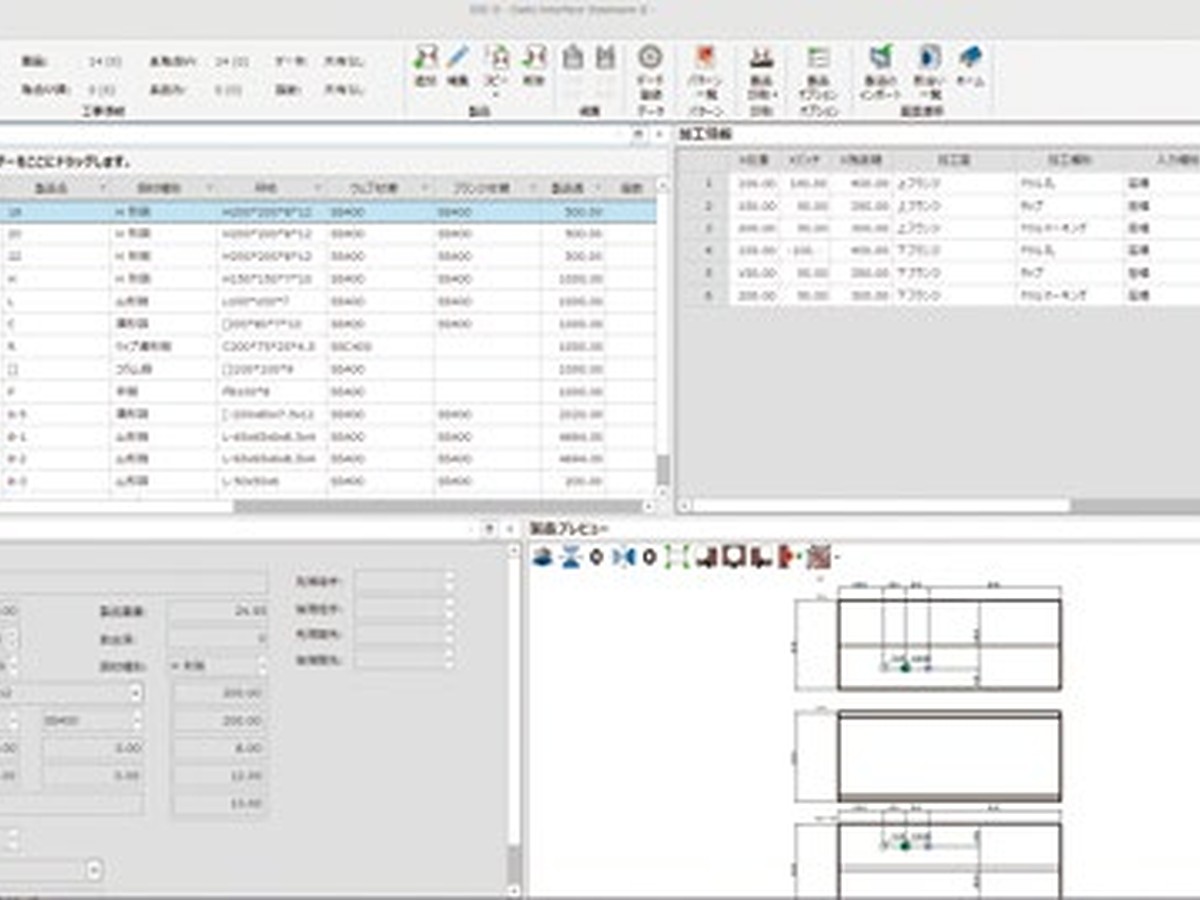

DIS II reads CAD, DSTV and NC1 files exported directly from Tekla and other structural CAD packages, then optimises and nests cut lengths to reduce waste. Programs are prepared offline in the office or entered at the machine, and run without re-entering data at the saw.
Optional Lift-and-Carry Loading

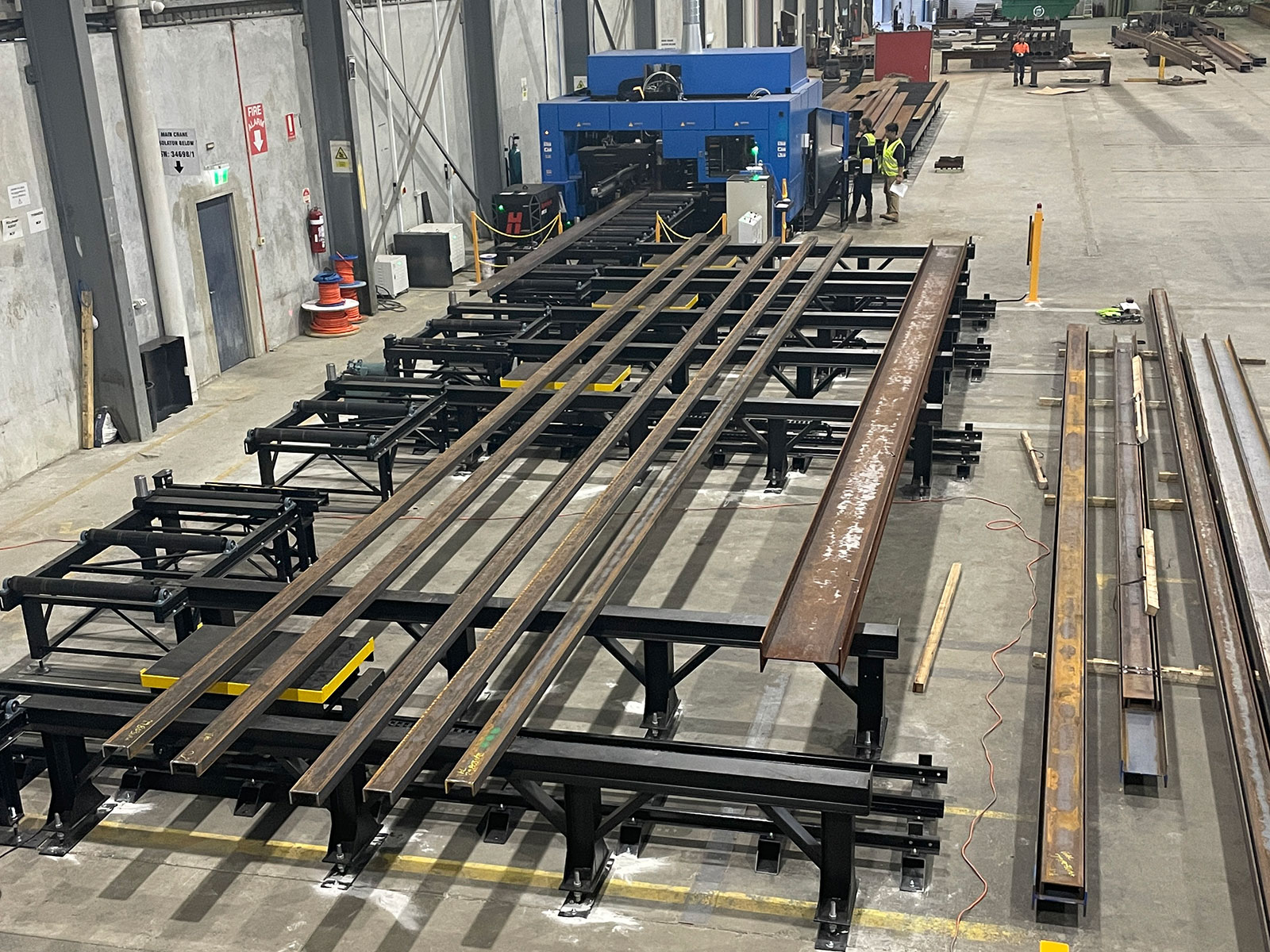

Optional lift-and-carry loading systems transfer sections from the storage racks onto the infeed conveyor and feed them to the saw. The next lengths can be staged while the saw is cutting.
Optional Discharge and Unloading Tables
Optional discharge tables and cross transfers move finished parts off the outfeed conveyor to collection areas. Cut parts are cleared from the line without manual handling at the saw.
More features
- Structural profile library sets blade speed and cutting feed for each section
- Vibration damper roller to reduce blade vibration and noise
- Servo-controlled cutting feed
- CNC touch-screen control
Options
- Lift-and-carry loading systems
- Discharge and unloading tables with cross transfers
- Infeed and outfeed roller lengths to suit
- Powered roller tables and pusher system
Why fabricators choose Daito
- Made in Japan. Daito-Seiki designs and builds its machines in Japan, and it shows in the machining, the fit and the electrical work.
- Reliability. Daito machines are built for continuous production, with long periods between faults and less unplanned downtime over the life of the machine.
- Straightforward to run. Operators are productive in days, not weeks. The control is simple and does what the job needs.
- Built around the operator. Design decisions are made for the person running the machine, not for the brochure.
Specifications
| Model | GTAR1000 | GTAR1300 |
|---|---|---|
| Capacity (W x H) | 1025 x 750 mm | 1325 x 700 mm |
| Mitre cutting | Automatic left and right | |
| Cutting feed | Servo controlled | |
| Control | CNC touch screen with structural profile library | |
| Blade protection | 6 degree blade angle, step feed, vibration damper roller | |
| Automation options | Powered roller tables, pusher system, lift-and-carry handling | |
Model, capacity and line configuration are confirmed against the section sizes and cut list at quotation. DIS II programming software is required and one licence is supplied with the machine. Guarding is supplied to Australian workplace safety requirements as standard. A transformer to suit Australian three-phase supply is supplied with the machine. IMS holds Daito parts in Australia and services the machine with its own technicians.
Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.

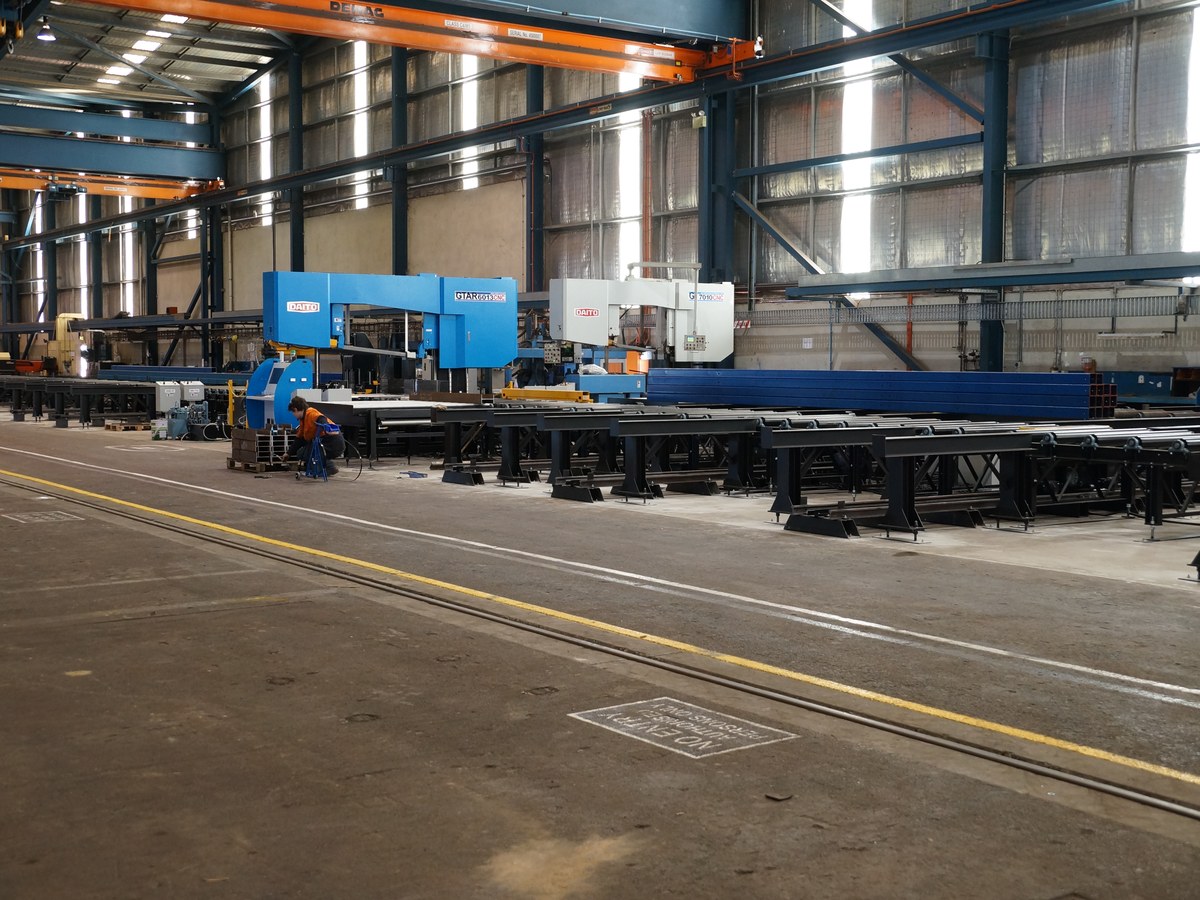

Installed and Supported in Australia
