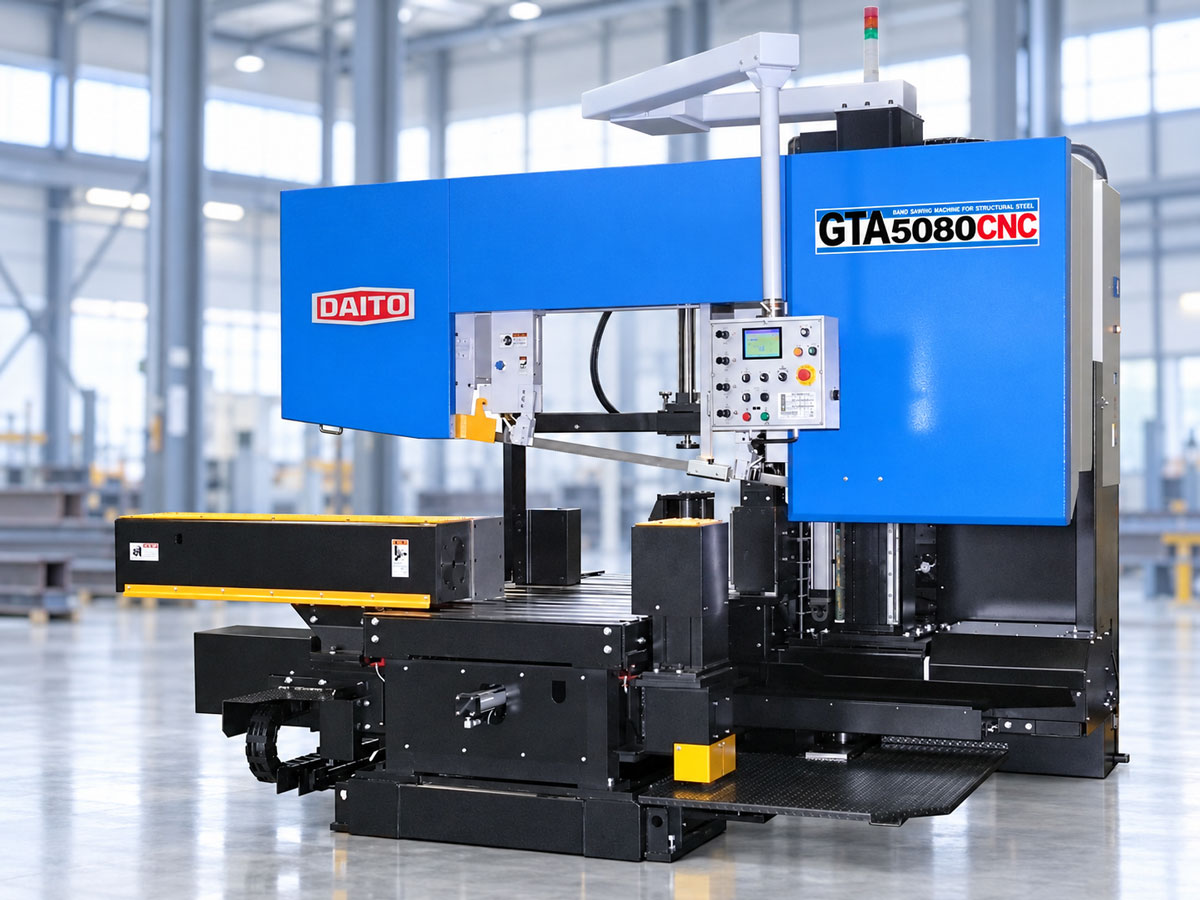

Daito GTA / GTS 5080 Automatic Mitre Bandsaw
Automatic CNC mitre bandsaw for structural steel, with pinch roller (GTA) or shuttle vice (GTS) feed
- Capacity 800 x 400 mm
- Automatic to 45°
The Daito GTA and GTS 5080 combine automatic length positioning, CNC mitre cutting and programmed cutting control for structural steel sections. Blade speed and feed rate are selected from a section profile library, and mitres to 45° are set automatically from the program.
The GTA feeds material with powered pinch rollers and suits single-section cutting, as a stand-alone saw or within a Daito drilling and coping line. The GTS feeds with a 2000 mm stroke shuttle vice and adds vertical vices for cutting bundled material up to 500 mm high.
Key features

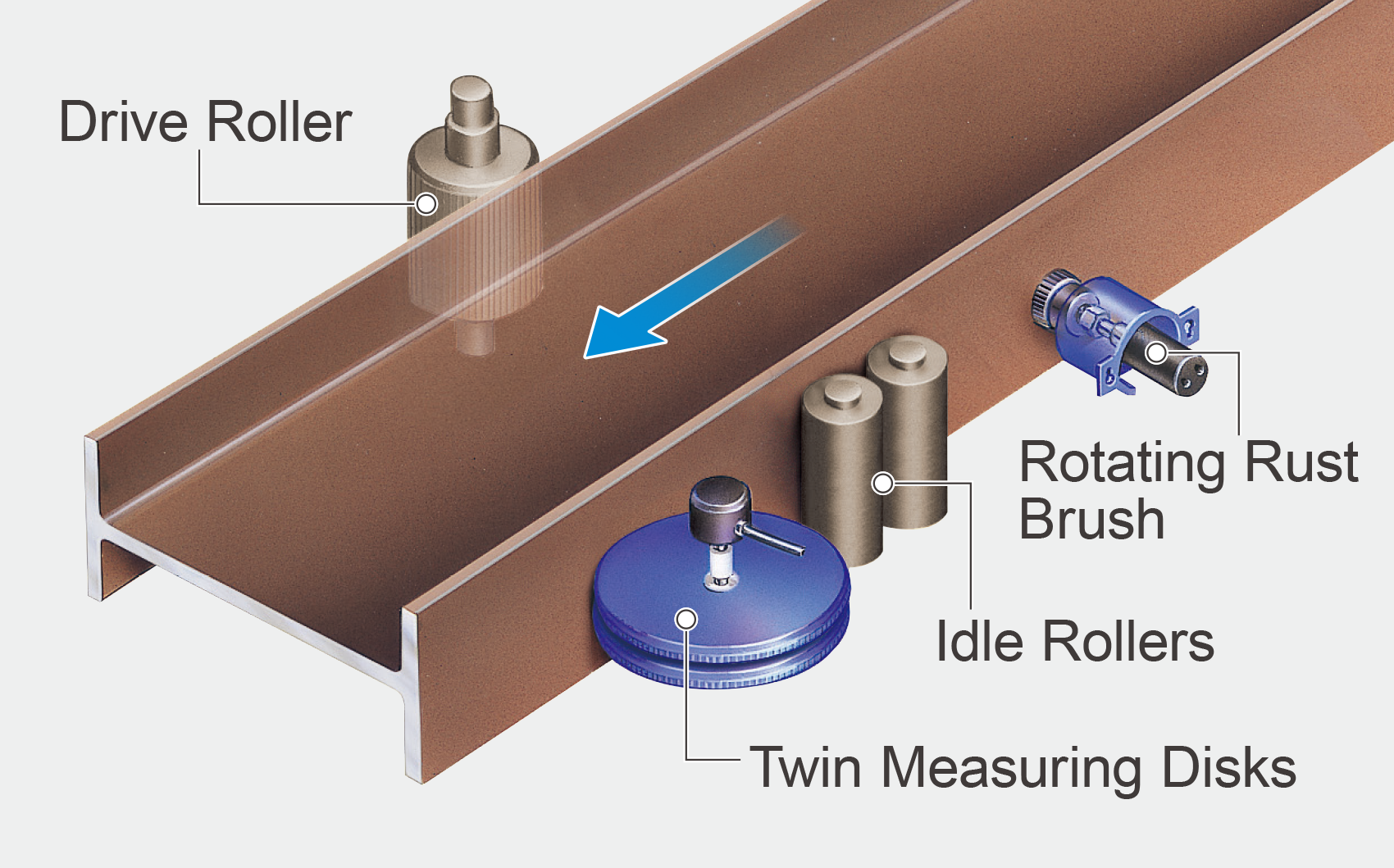

Pinch Roller Feed with Dual Measuring Discs (GTA)
Powered pinch rollers position the workpiece in one continuous feed, reducing the repeated indexing of a shuttle-vice system. Two measuring discs independently check material movement, and the machine stops before cutting if their readings differ beyond the permitted tolerance.
Shuttle Vice Feed and Bundle Cutting (GTS)
The GTS feeds material with a 2000 mm stroke shuttle vice on the infeed side. Three vertical vices clamp bundled material up to 500 mm high, with bundle capacity to 750 x 300 mm.
Indexable Front Shuttle Vice
The front shuttle vice advances short pieces and remnants beyond the pinch rollers, supporting the final stages of material processing and discharge. 500mm stroke for both models.

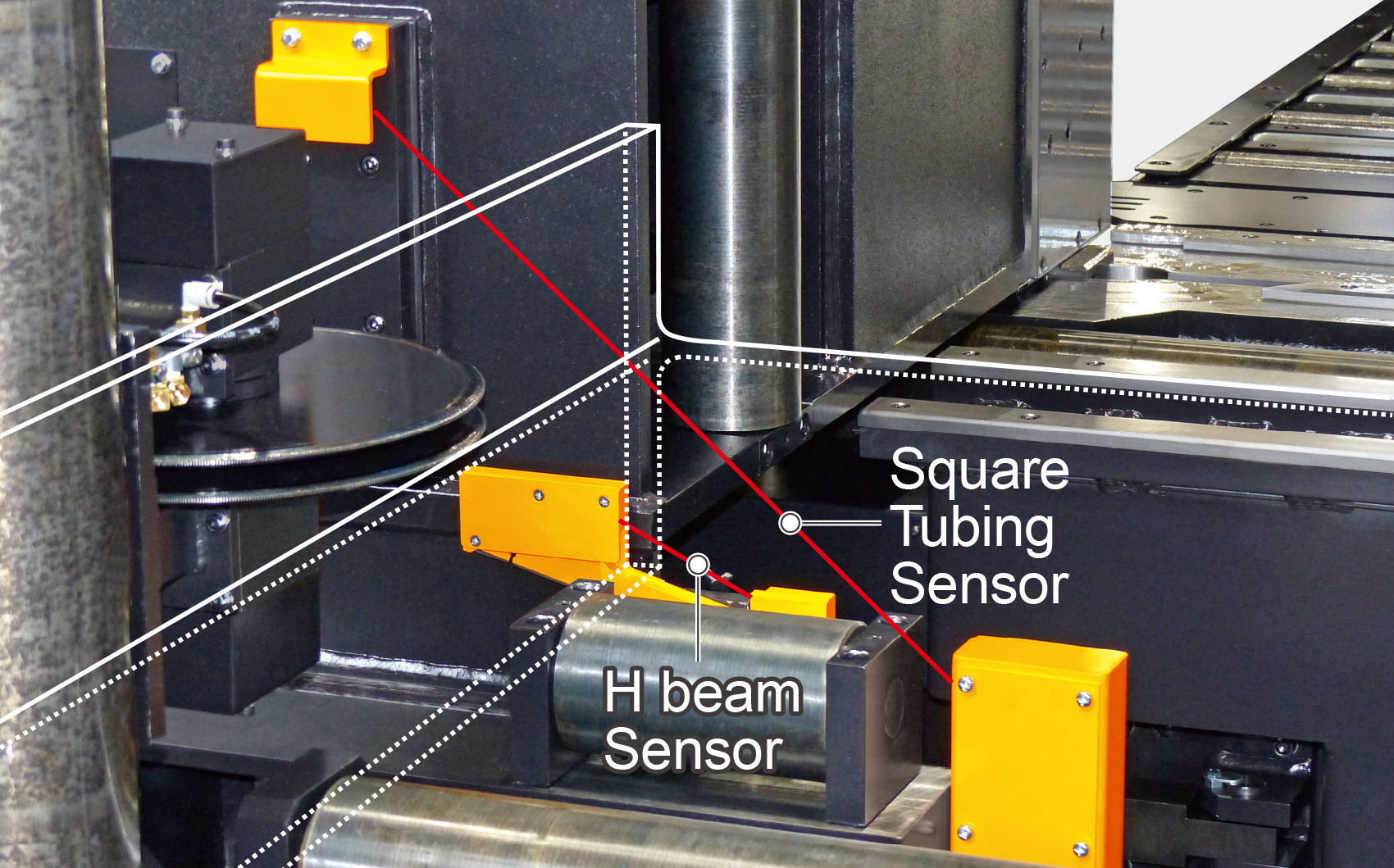

Automatic Leading-End Detection
Sensors detect the leading end of the workpiece and establish the datum for length positioning, reducing manual measurement and setup.

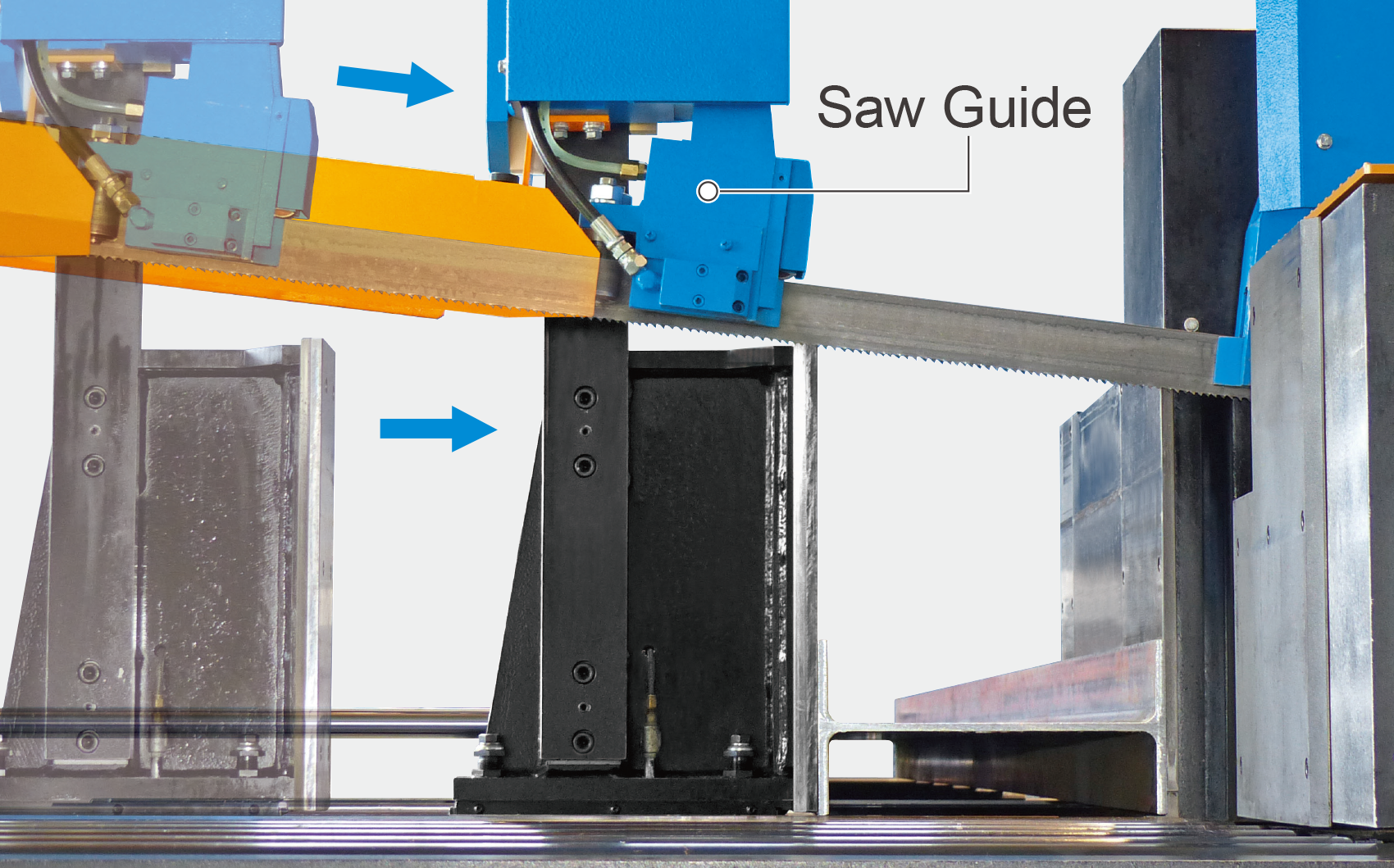

Vice-Linked Blade Guide
The left blade guide moves with the vice to maintain support close to the workpiece. Hydraulically loaded guide inserts provide blade support across varying section widths.
Step-Feed Blade Pinch Prevention
Daito’s step-feed function helps relieve blade pinching caused by internal stresses in structural sections, reducing the risk of blade damage and interrupted cuts.

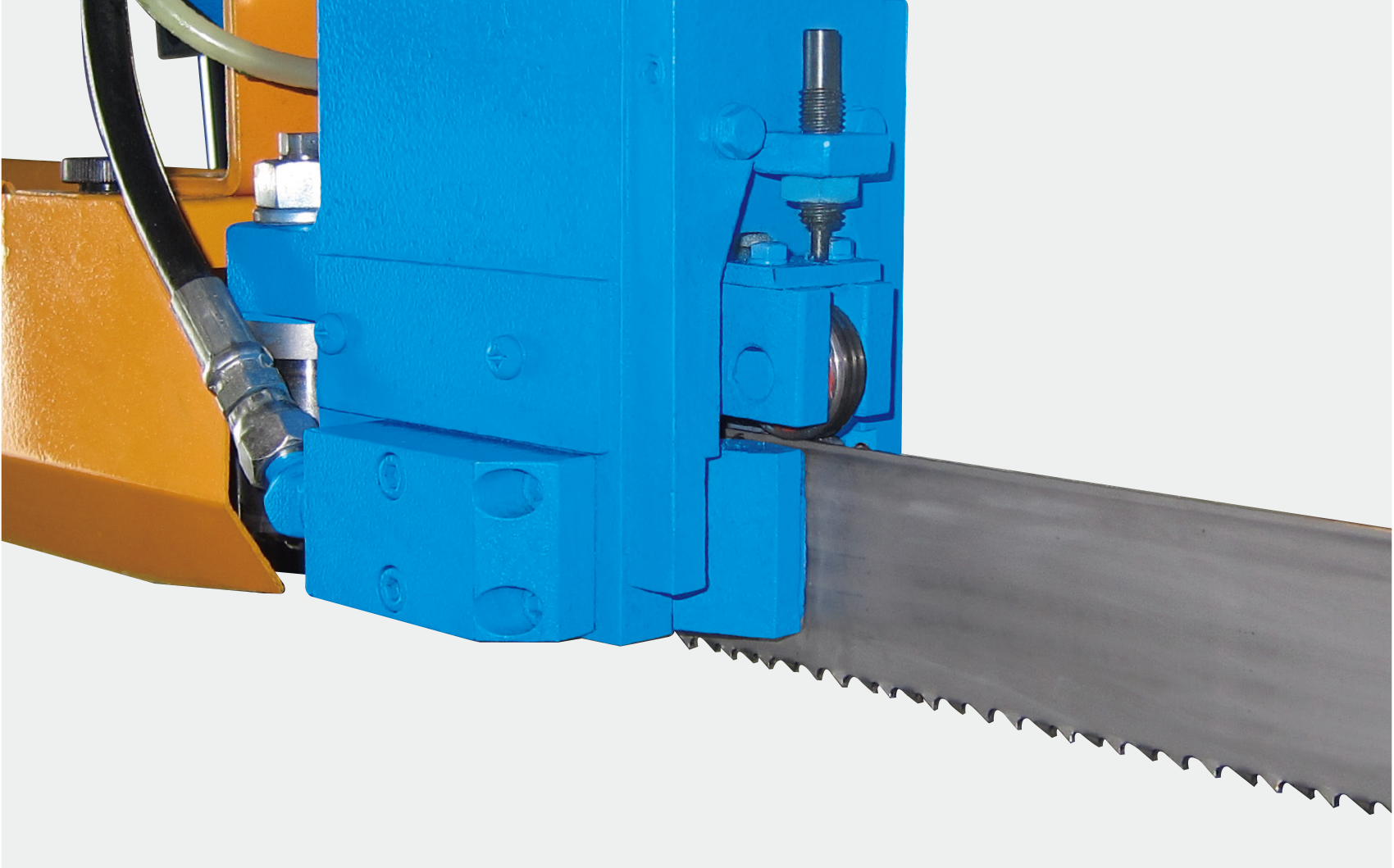

Blade Vibration Damping
A damper roller supports the blade during cutting to reduce vibration and cutting noise, helping maintain stable cutting conditions and extend blade life.
More features
- Automatically centred vertical vice for added clamping and reduced vibration
- 500 mm stroke front shuttle vice on both models for short pieces and remnants
- Up to 24 mitre angles stored in the control
- CNC cutting optimisation, with cutting conditions shown on screen
- Swing-out pendant operation panel
- Mist applicator included, with coolant or spray mist selectable
Options
- Laser cut-position marker
- Light-duty roller tables
- Heavy-duty roller tables
Why fabricators choose Daito
- Made in Japan. Daito-Seiki designs and builds its machines in Japan, and it shows in the machining, the fit and the electrical work.
- Reliability. Daito machines are built for continuous production, with long periods between faults and less unplanned downtime over the life of the machine.
- Straightforward to run. Operators are productive in days, not weeks. The control is simple and does what the job needs.
- Built around the operator. Design decisions are made for the person running the machine, not for the brochure.
Specifications
| GTA5080 | GTS5080 | |
|---|---|---|
| Cutting capacity | ||
| Rectangle at 0° | 800 x 400 mm | 750 x 400 mm |
| Square at 0° | 500 mm | 500 mm |
| Rectangle at 45° | 400 x 400 mm | 400 x 400 mm |
| Square at 45° | 400 mm | 400 mm |
| Bundle | - | 750 x 300 mm |
| Blade | ||
| Blade size (W x T x L) | 41 x 1.27 x 6860 mm | 41 x 1.27 x 6860 mm |
| Blade speed | 10 to 118 m/min | 10 to 118 m/min |
| Work feed | ||
| Infeed | Pinch roller | Shuttle vice, 2000 mm stroke |
| Outfeed | Shuttle vice, 500 mm stroke | Shuttle vice, 500 mm stroke |
| Motors and weight | ||
| Saw blade motor | 5.5 kW | 5.5 kW |
| Hydraulic motor | 2.2 kW | 2.2 kW |
| Work feed motor | 1.5 kW | 2.2 kW |
| Power consumption | 44 A at 200 V | 47 A at 200 V |
| Machine weight | 7000 kg | 9620 kg |
| Standard accessories | 2 saw blades, tool set | 2 saw blades, tool set |
Model, capacity and line configuration are confirmed against the section sizes and cut list at quotation. Guarding is supplied to Australian workplace safety requirements as standard. A transformer to suit Australian three-phase supply is supplied with the machine. IMS holds Daito parts in Australia and services the machine with its own technicians.
Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
Video
Installed and Supported in Australia
IMS imports direct from the factory and looks after the machine from delivery on.
- Installation and commissioning by IMS technicians
- Operator training on site
- Guarding to Australian workplace safety requirements
- Spare parts and consumables held in Australia
- Service and breakdown support from factory-trained technicians
About Daito
Daito-Seiki, Japan. CNC structural steel processing — beam lines, coping robots, mill bevel machines and structural bandsaws.
