Cosen SH-510LDM & SH-710LDM Dual Column Mitre Bandsaws
Semi-automatic dual-column double-mitre bandsaws, 320 and 470 mm round, two models
- 510 or 710 mm capacity
- −60° to +60° mitre
- 34 or 41 mm wide blade

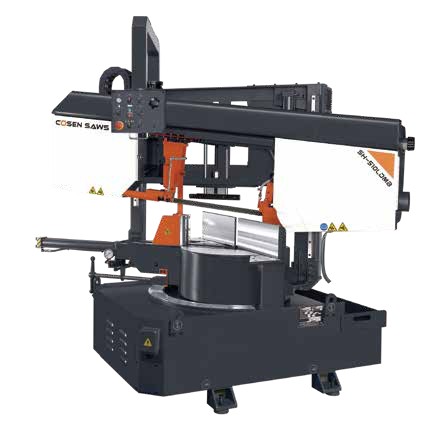

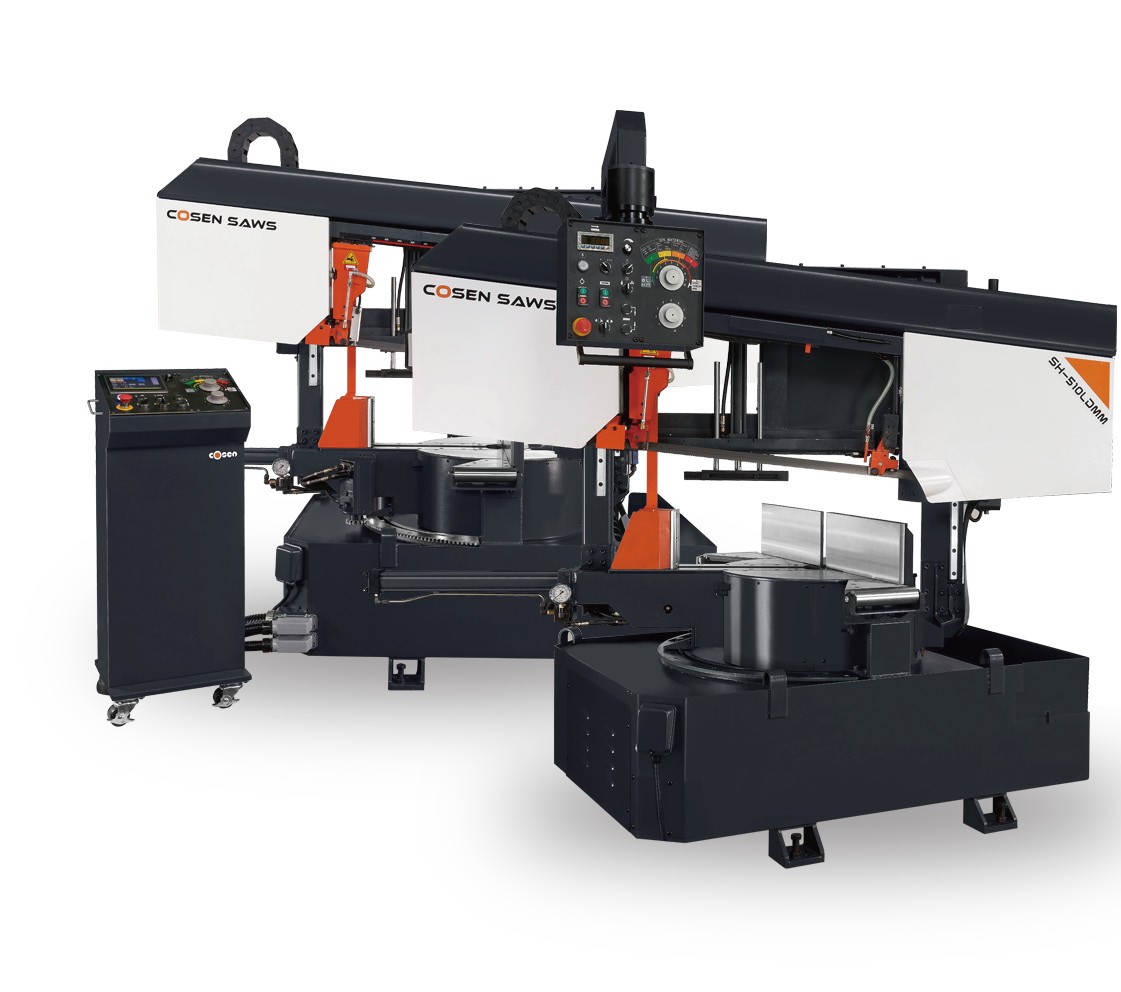

The Cosen SH-510LDM and SH-710LDM are semi-automatic horizontal bandsaws with the saw frame on linear-guided dual columns and a heavy cast swivel centre that mitres 60 degrees to either side. Hydraulic frame lift with return to a preset height and a full stroke hydraulic vice make each cut a load, clamp and start operation. The SH-510LDM is offered with a manual swivel and long lever lock, or with hydraulic swivel and automatic angle positioning from a wheeled control station with a 7 inch HMI.
They suit structural fabricators cutting beam, channel, angle and RHS where left and right mitres are needed on the same bar and the operator sets each angle. The SH-510LDM cuts 330 x 510 mm in a compact footprint; the SH-710LDM cuts 420 x 710 mm on a 7.5 HP drive with a 10 degree blade cant for structural section.
Key features
Double mitre to 60 degrees both ways

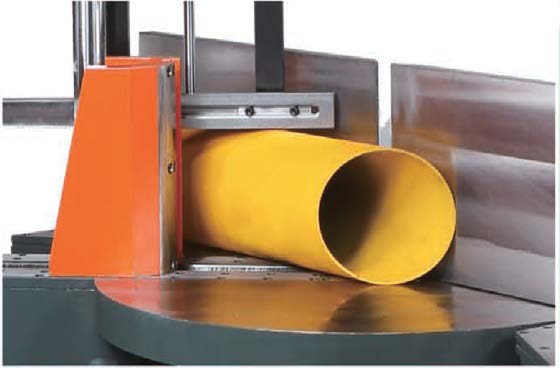

The saw frame turns on a heavy cast iron swivel centre to any angle from 60 degrees left to 60 degrees right, read from a large scale. Left and right mitres on one bar are cut from a single clamping without turning the material.
Linear-guided dual column frame
The saw frame rides on dual linear guides rather than a hinge, so the blade descends square through the full depth of a wide section. Cut squareness holds on 700 mm beam at full mitre where a hinge frame would deflect.
Hydraulic swivel with automatic angle positioning

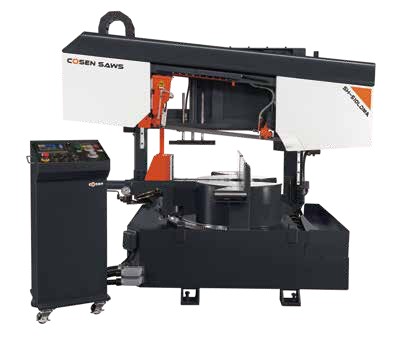

On the SH-510LDMA the frame swivels and locks hydraulically and positions itself to an angle entered on the HMI. The operator keys the angle and the saw sets it, so repeat angles are exact and changeover takes seconds.
Full stroke cylinder vice and split vice
The vice clamps through its full stroke hydraulically and is split either side of the blade, so any section within capacity is held on both sides of the cut. Parts come off burr free and the remnant is reduced to the minimum.

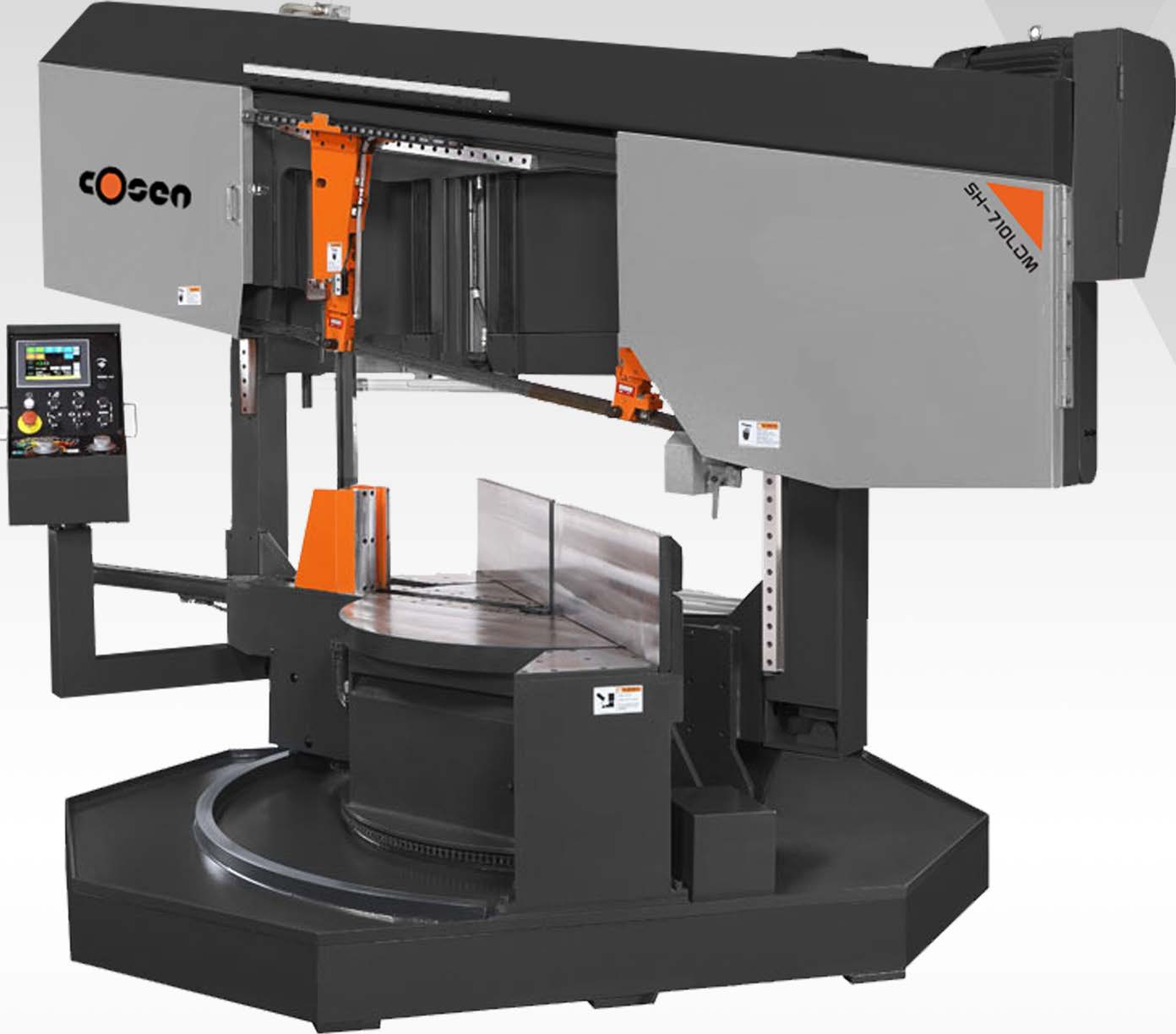

10 degree blade cant on the SH-710LDM
The larger machine runs its 41 mm blade at 10 degrees to the material on a 7.5 HP drive with a gearbox rated for high lateral load. Beam, channel and heavy RHS are cut faster and with longer blade life than on a square-entry frame.
Guide arm traversing with the vice
The solid guide arm is mounted directly under the saw frame and moves in sync with the vice on dual linear guides. The unsupported blade span is always the minimum for the section clamped, without the operator repositioning the arm.
Independent control station
On the hydraulic swivel model the controls sit on a wheeled station with a quick connector and 7 inch HMI showing cutting information, and on the manual model the hanging panel swivels from front to back of the frame. The operator works from the loading side at either mitre direction.
Dual valve feed and hydraulic blade tension
Feed rate and cutting pressure are set on separate valves, and blade tension is set and held hydraulically. Feed is matched to the section without trial cuts and tension is correct on every start.
Is the Cosen SH-510LDM & SH-710LDM Dual Column Mitre Bandsaws right for your workshop?
The SH-LDM saws are specified where double mitre cutting of structural section is done with the operator setting each angle and the frame must stay rigid on wide beam. For programmed double mitre from a cut list the M5 and M8 apply; for lighter work with a hinge frame the SH-520DM and SH-700DM. Model is confirmed from sections and volume at quotation.
Talk to a specialistSpecifications
| Model | SH-510LDM | SH-710LDM |
|---|---|---|
| Round capacity at 0 degrees | 320 mm | 470 mm |
| Rectangular capacity at 0 degrees (H x W) | 330 x 510 mm | 420 x 710 mm |
| Round capacity at 45 degrees | 320 mm | 420 mm |
| Rectangular capacity at 45 degrees (H x W) | 330 x 320 mm | 420 x 450 mm |
| Round capacity at 60 degrees | 200 mm | 300 mm |
| Rectangular capacity at 60 degrees (H x W) | 330 x 200 mm | 420 x 300 mm |
| Mitre range | minus 60 to plus 60 degrees | minus 60 to plus 60 degrees |
| Swivel | Manual with lever lock (LDMM) or hydraulic with automatic positioning (LDMA) | Manual with lever lock |
| Blade cant | 6 degrees | 10 degrees |
| Blade speed | 25 to 100 m/min | 25 to 100 m/min |
| Blade size (L x W x T) | 4960 x 34 x 1.1 mm | 6540 x 41 x 1.3 mm |
| Blade motor | 2.2 kW (3 HP) | 5.5 kW (7.5 HP) |
| Hydraulic motor | 0.75 kW | 0.75 kW |
| Blade tension | Hydraulic | Hydraulic |
| Vice | Hydraulic full stroke, split | Hydraulic full stroke, split |
| Workbed height | 780 mm | 755 mm |
| Weight | 1405 kg (LDMM), 1440 kg (LDMA) | 2900 kg |
| Floor space (L x W x H) | 2550 x 2463 x 2050 mm | 3210 x 3142 x 2305 mm |
Model, swivel type and options are confirmed against the sections and volume at quotation. Guarding is supplied to Australian workplace safety requirements as standard. IMS holds Cosen parts and bandsaw blades in Australia and services the machine with its own technicians.
Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
Installed and Supported in Australia
IMS imports direct from the factory and looks after the machine from delivery on.
- Installation and commissioning by IMS technicians
- Operator training on site
- Guarding to Australian workplace safety requirements
- Spare parts and consumables held in Australia
- Service and breakdown support from factory-trained technicians
