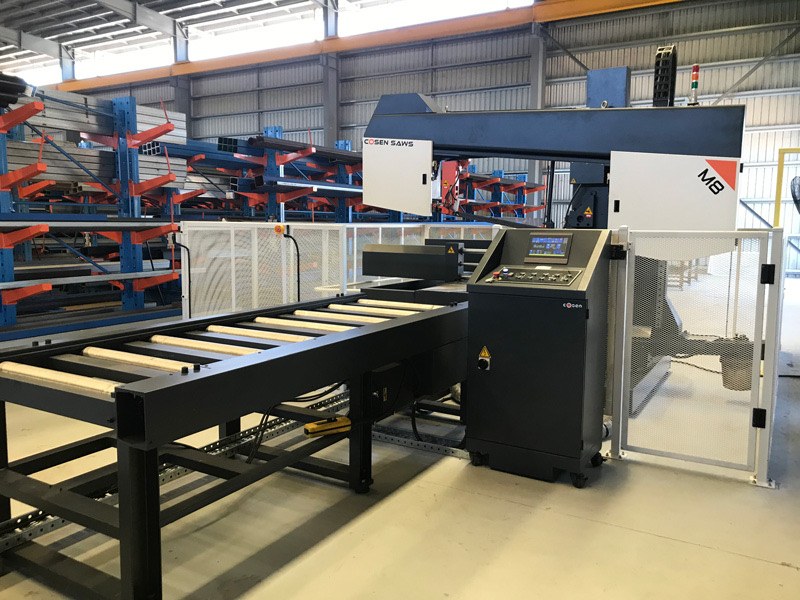

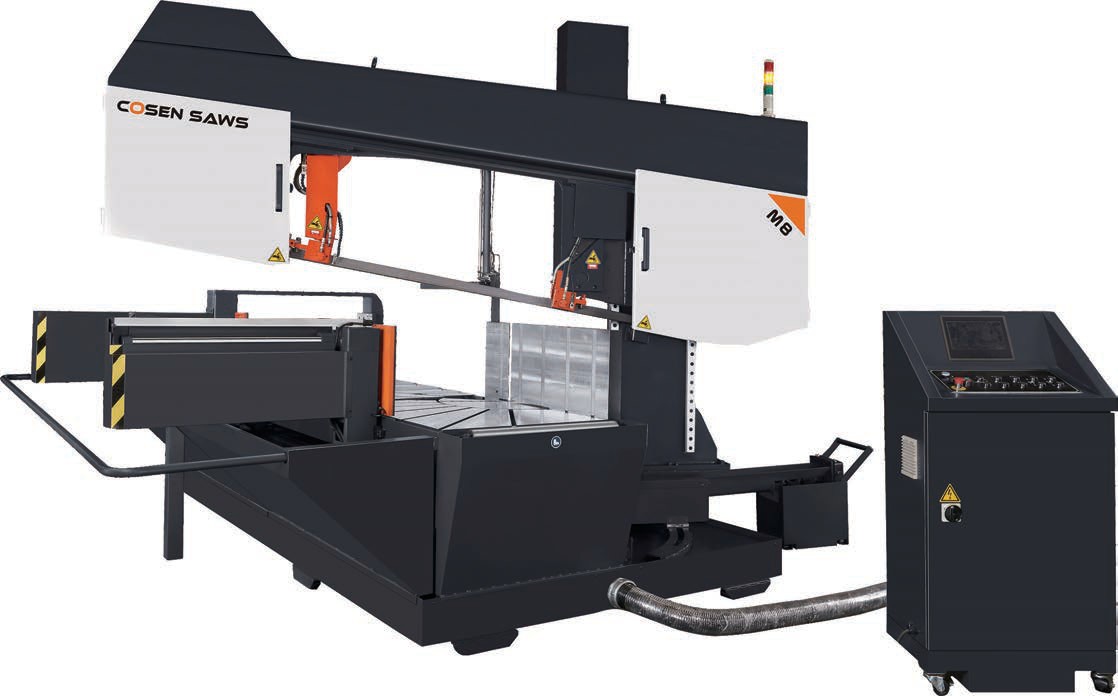

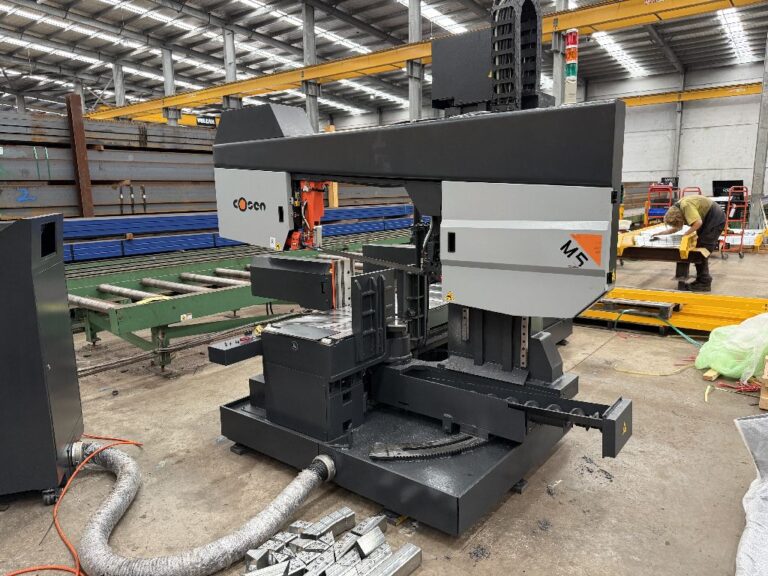

Cosen M5 & M8 Servo Automatic Mitre Bandsaw
CNC automatic double-mitre bandsaws for structural steel, 500 and 800 mm wide, two models
- 500 mm or 800 mm capacity
- −60° to +60° mitre
- 34 or 54 mm wide blade

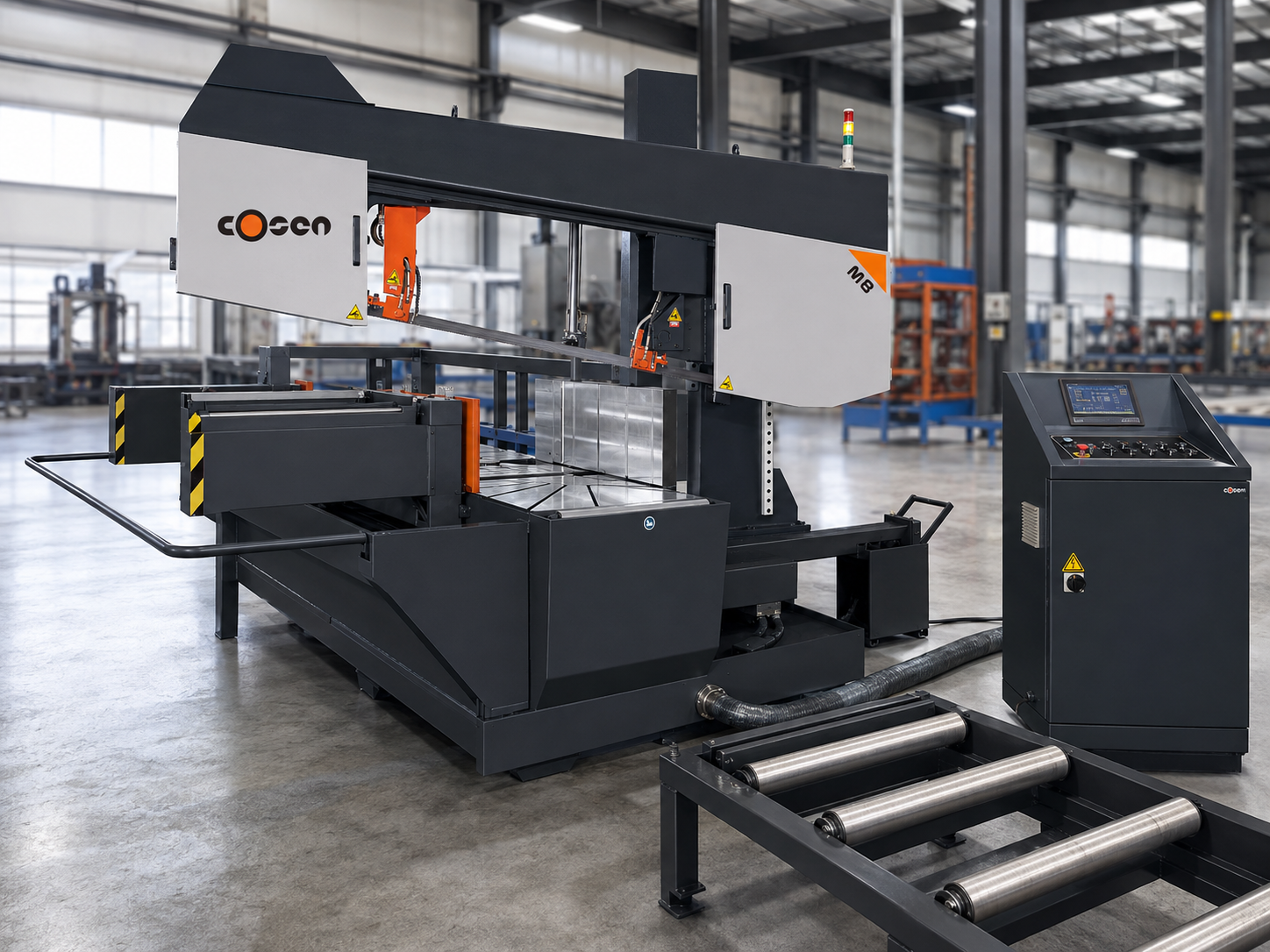

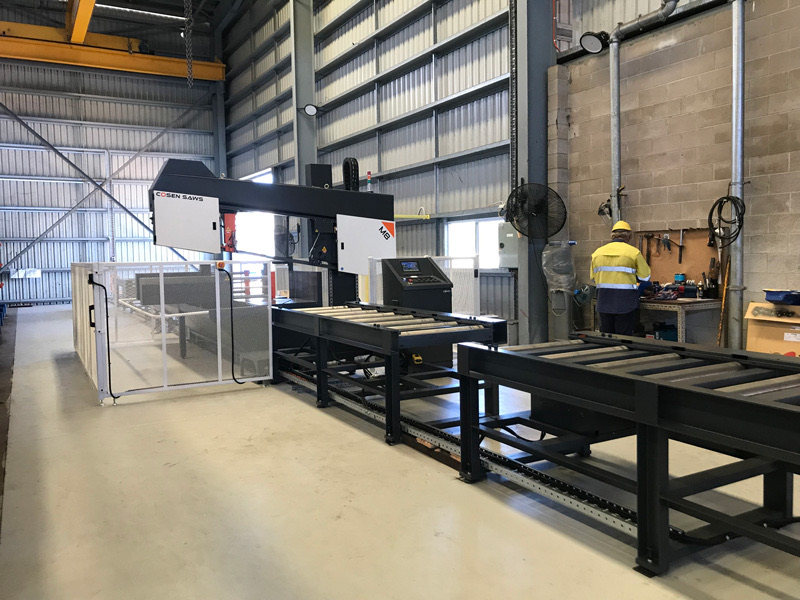

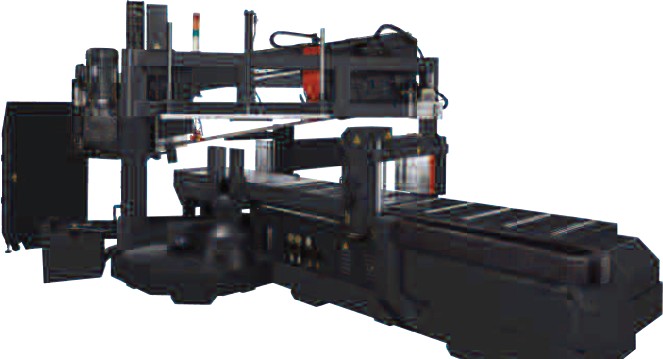

The Cosen M5 and M8 are fully automatic horizontal bandsaws that mitre forward or backward to 60 degrees under program control. Lengths, quantities and angles are entered together on the 10 inch HMI, a servo-driven shuttle vice positions the material, the saw bow swivels to each angle and the cut list runs without the operator at the machine. A 10 degree blade cant is set for H-beam, I-beam, channel and profile.

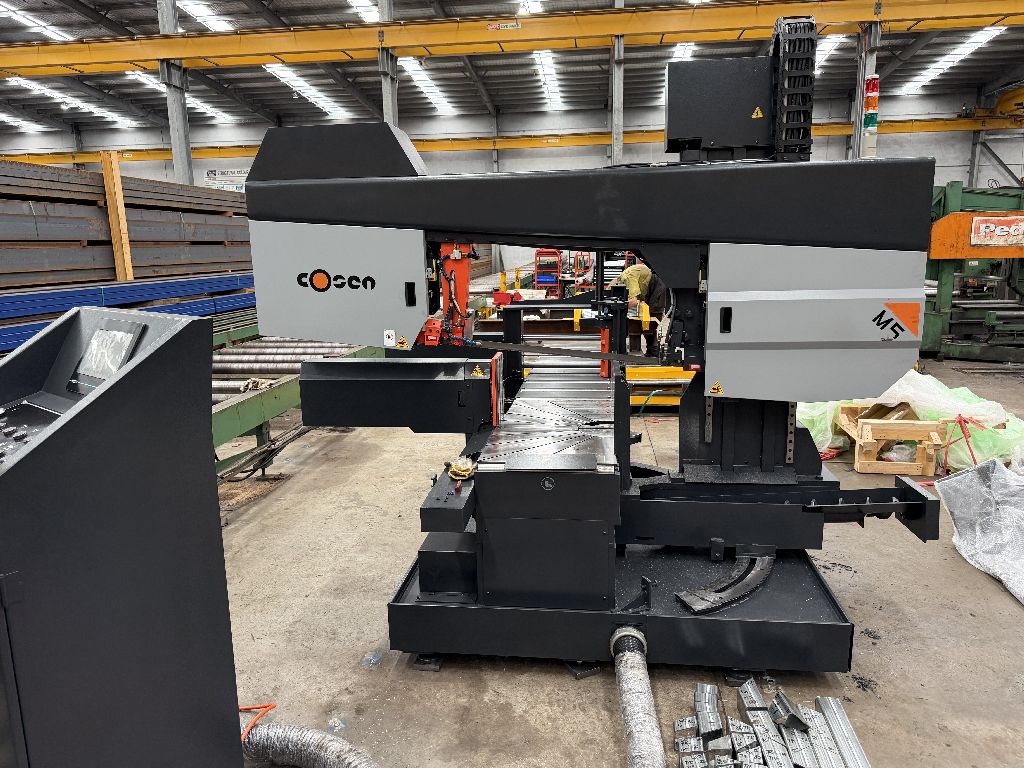

They suit structural fabricators and steel merchants cutting beam and section in volume where opposing mitres are needed on the same bar. Width is the choice between the two: the M5 cuts to 500 mm wide on a 34 mm blade, the M8 to 800 mm on a 54 mm blade.
Key features

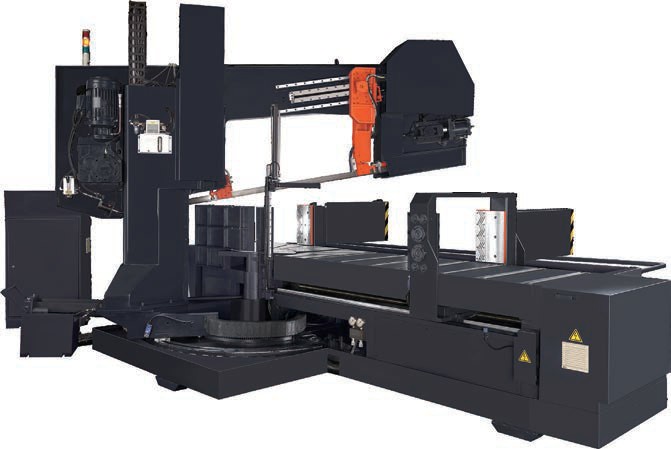

Programmed double mitre to 60 degrees

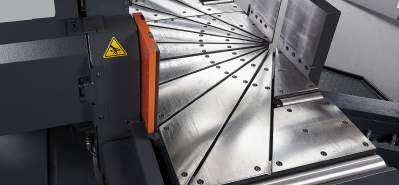

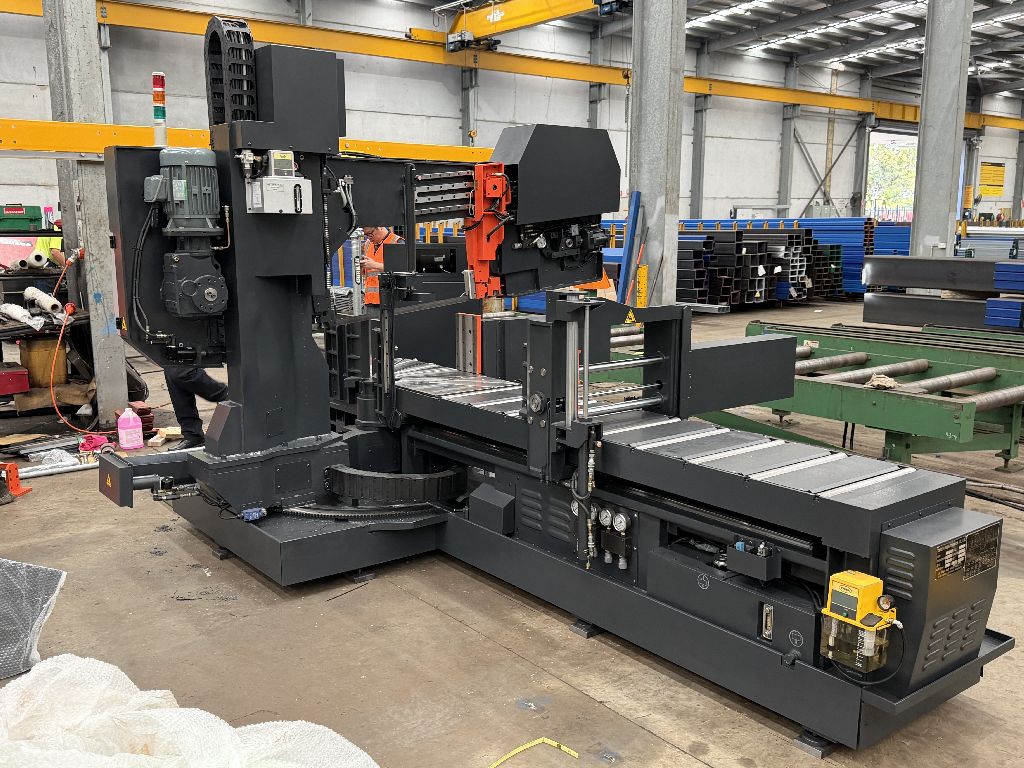

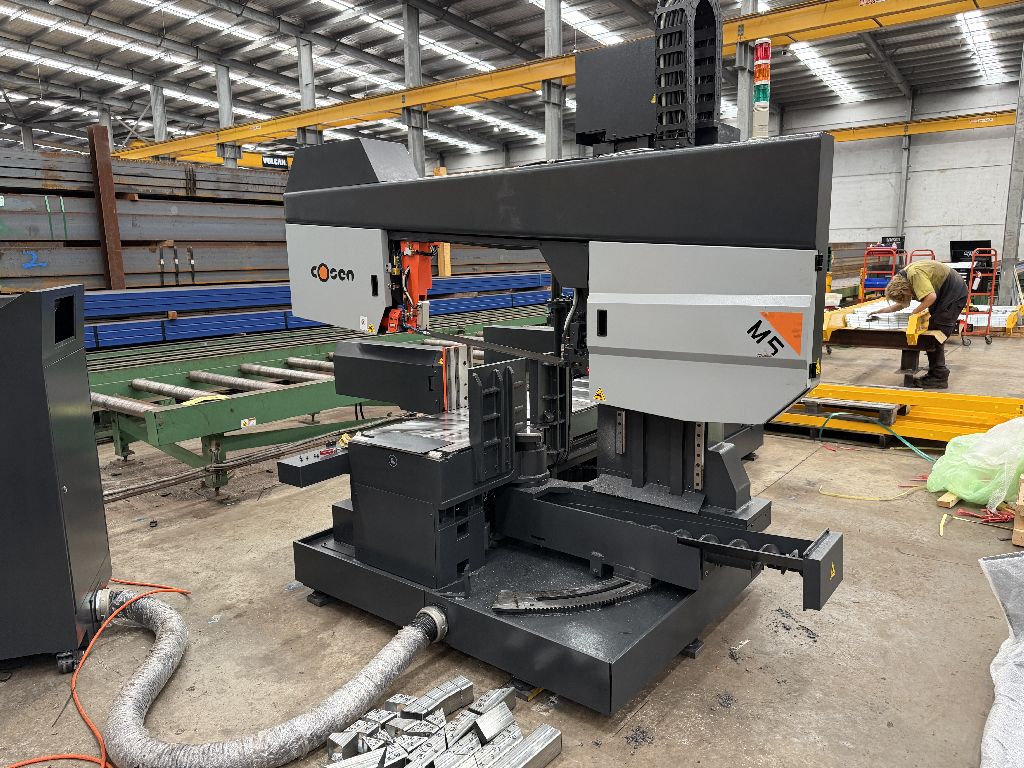

The saw bow swivels forward or backward to any angle up to 60 degrees under program control on a heavy-duty rotary work table, with the angle held in the cut list with length and quantity. Opposing mitres on one beam are cut in sequence without turning the bar end for end.
10 degree blade cant
The blade runs at 10 degrees to the material so it enters the flange progressively and stays in contact through the web. Beam, channel and profile are cut faster and with longer blade life than on a square-entry frame.

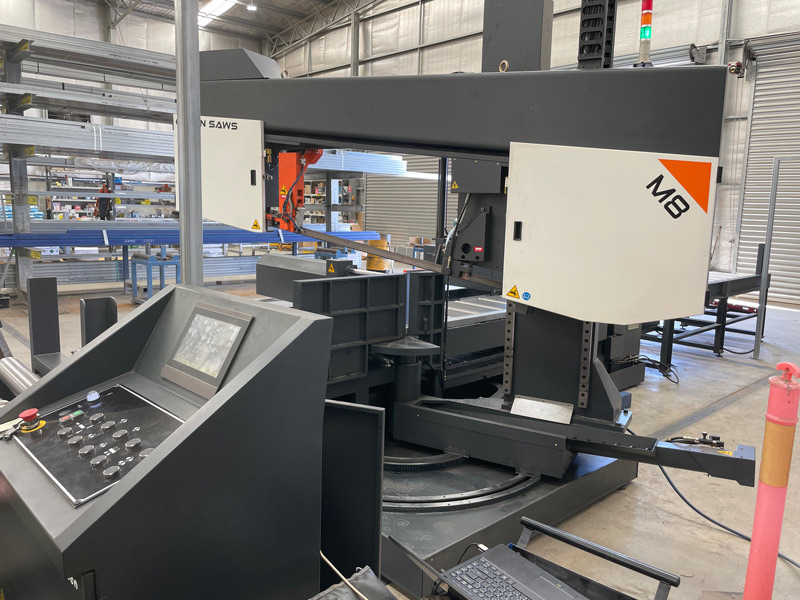

Smart NC-100 on a 10 inch HMI
The control stores jobs by length, quantity and angle, compensates kerf loss automatically and shows the linear downfeed rate as the blade cuts. The cut list is entered once, and feed is set against the reading rather than by guess.

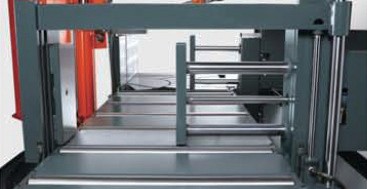

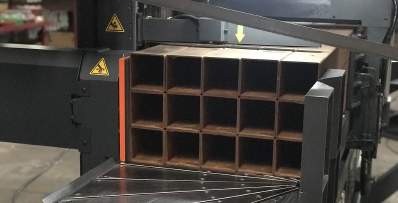

Servo-driven shuttle vice
Material is fed by a shuttle vice on a servo motor with a 2 m single stroke and multiple indexing to 99 m. Feed is positioned to the millimetre at 15 m per minute, and long parts are reached without a separate measuring stop.

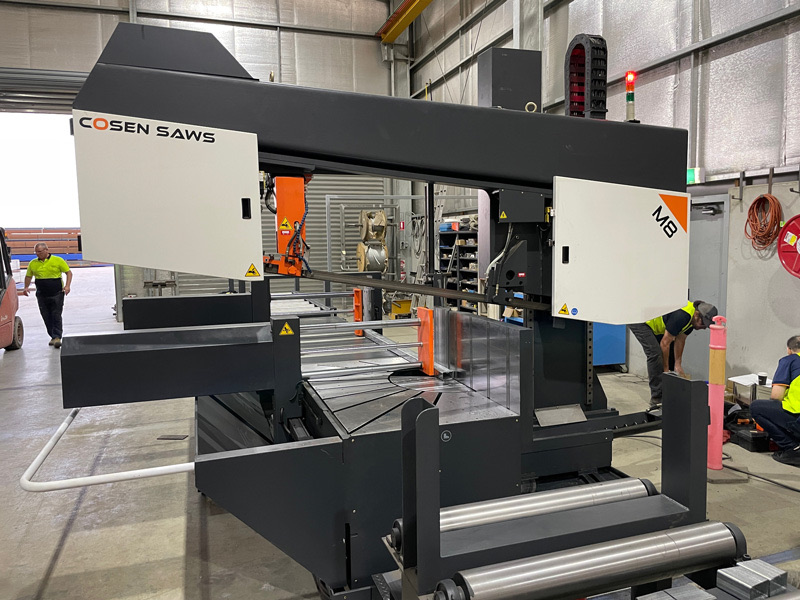

Double retracting vice jaws
Both vice jaws open and close together on large scrape-free plates, so misaligned or bent stock is centred by the vice rather than pushed to one side. Hot-rolled section feeds without jamming and the cut stays square to the bar.

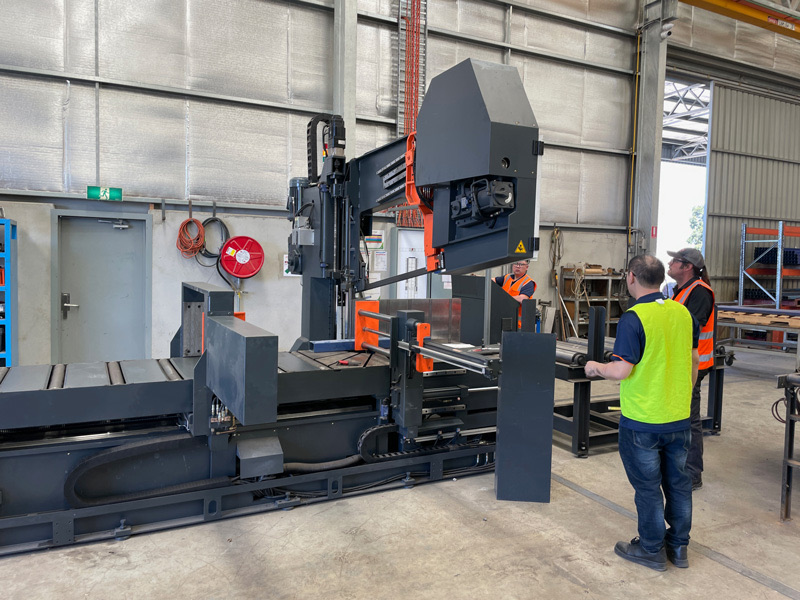

Hydraulic guide arm and blade guide
The guide arm positions hydraulically to the material width and carries carbide guides with bearing pre-alignment. The unsupported blade span is kept to the minimum for each section, which holds squareness at full mitre angle on wide beam.

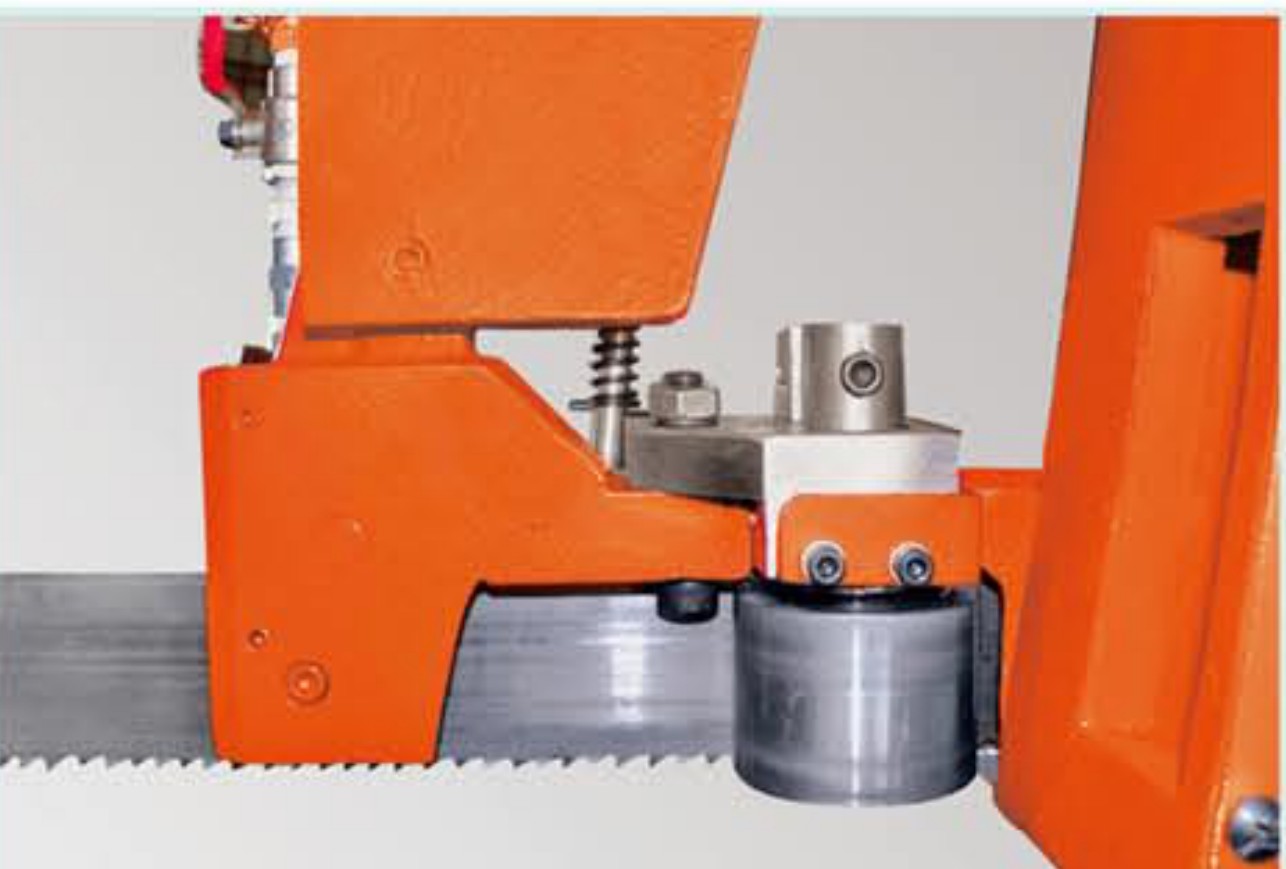

Vibration damper
A damper bears on the blade to suppress vibration through the cut. Cutting rate is increased on thin-wall and open sections and the cut surface is smooth enough to weld without dressing.
Mitre angle display and two swivel speeds
The current mitre angle is displayed on the control, and the bow swivels at a fast rate to near the angle and a slow rate to position. Angle changes between parts are quick and accurate without the operator checking a scale.
Is the Cosen M5 & M8 Servo Automatic Mitre Bandsaw right for your workshop?
The M5 and M8 are specified where double mitre cutting of structural section runs from a cut list without an operator at the saw. For single-direction mitre at lower cost the C-510MNC and C-650MNC apply; for double mitre with the operator setting each angle the SH-LDM and SH-DM machines. Model is confirmed from section widths and volume at quotation.
Talk to a specialistSpecifications
| Model | M5 | M8 |
|---|---|---|
| Rectangular capacity at 0 degrees (H x W) | 310 x 500 mm | 500 x 800 mm |
| Round capacity at 0 degrees | 310 mm | 500 mm |
| Rectangular capacity at plus 45 degrees (H x W) | 310 x 420 mm | 500 x 480 mm |
| Rectangular capacity at minus 45 degrees (H x W) | 310 x 350 mm | 500 x 480 mm |
| Rectangular capacity at plus 60 degrees (H x W) | 310 x 285 mm | 500 x 320 mm |
| Rectangular capacity at minus 60 degrees (H x W) | 310 x 210 mm | 500 x 320 mm |
| Mitre range | minus 60 to plus 60 degrees, programmed | minus 60 to plus 60 degrees, programmed |
| Blade cant | 10 degrees | 10 degrees |
| Blade speed | 20 to 100 m/min | 20 to 100 m/min |
| Blade size (L x W x T) | 5860 x 34 x 1.1 mm | 7620 x 54 x 1.6 mm |
| Blade motor | 3.73 kW (5 HP) | 7.5 kW (10 HP) |
| Hydraulic motor | 0.75 kW | 2.2 kW |
| Vice | Hydraulic, NC automatic, 20 to 30 kg/cm2 | Hydraulic, NC automatic, 38 to 45 kg/cm2 |
| Feed | Servo shuttle vice, 15 m/min | Servo shuttle vice, 15 m/min |
| Single feed stroke | 2000 mm | 2000 mm |
| Multiple indexing | to 99 m | to 99 m |
| Shortest remnant | 300 mm | 400 mm |
| Workbed height | 735 mm | 855 mm |
| Weight | 3716 kg | 5840 kg |
| Floor space (L x W x H) | 3043 x 4580 x 2518 mm | 4103 x 4017 x 2958 mm |
Model, clamping and material handling are confirmed against the sections, lengths and cut list at quotation. Guarding is supplied to Australian workplace safety requirements as standard. IMS holds Cosen parts and bandsaw blades in Australia and services the machine with its own technicians.
Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
