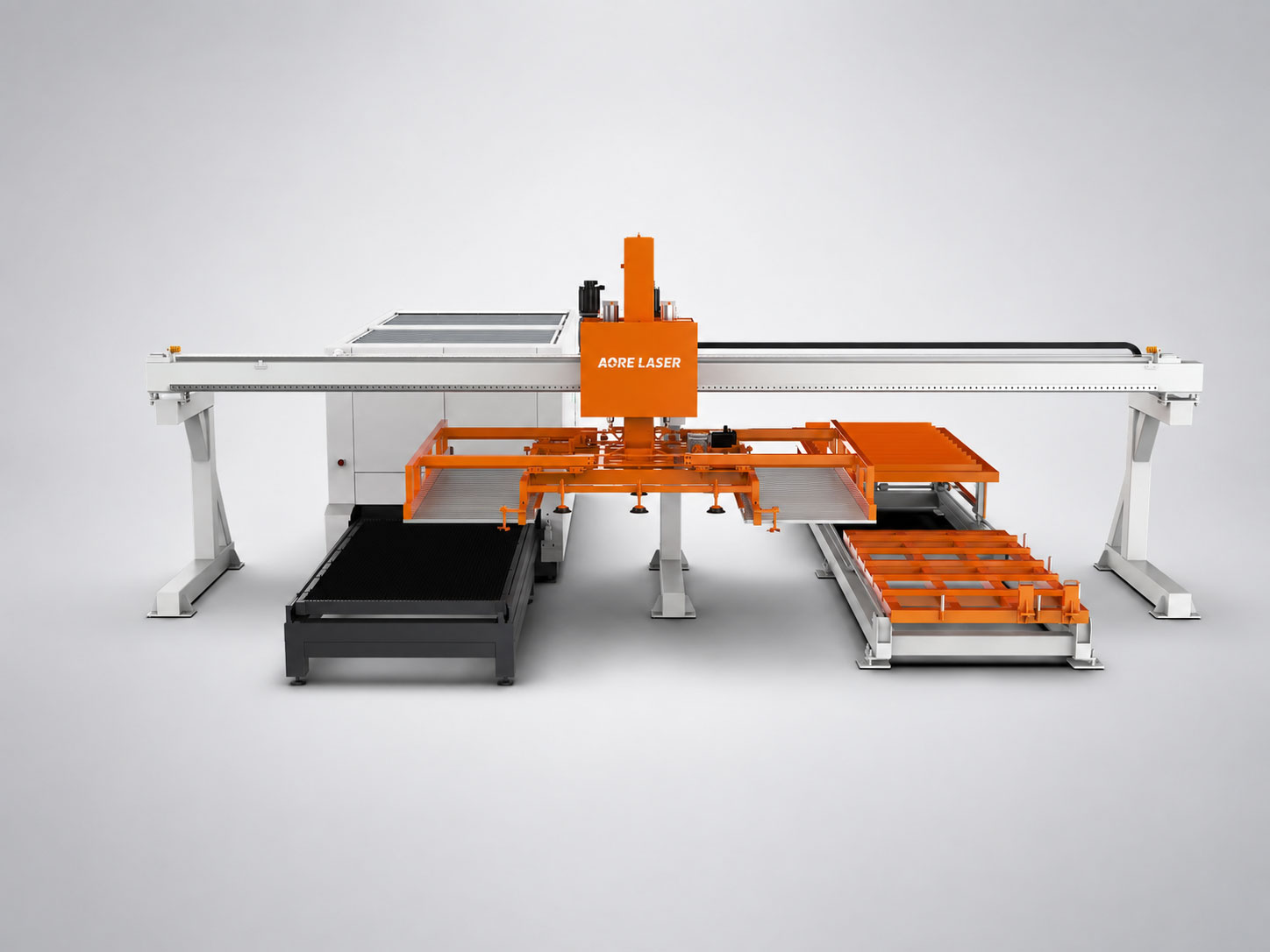

AORE LGS Automatic Sheet Loading and Unloading System
- Automatic loading
- Full-sheet unloading
- Synchronised to the laser
- Sensor monitored
The LGS loads raw sheet onto the laser and removes the cut sheet, both without crane or forklift handling.
It suits steady production where time lost between nests has become more significant than the cost of handling equipment.
Key features
Loads the sheet and takes it off again
The gantry picks raw sheet, loads the laser and removes the processed sheet when cutting is complete. Repetitive handling in both directions is removed, leaving the operator on production and part removal.
Coordinated with the cutting cycle
The scheduling system times sheet movement against the laser and its exchange table, so material is ready when the machine requires it. Waiting time between finished nests is eliminated.
Sensors and interlocks around the moving gear
Sensors monitor pickup, travel and placement through the cycle, with interlocks protecting the handling area. The guarding layout is specified to the installation and supplied with the machine to Australian workplace safety requirements.
Is it the loading or the unloading costing you time?
The LGS is specified where both loading and unloading time are limiting laser output. Selection against a simpler loading arm is determined by the current feeding and clearing method and sheets per shift.
Talk to us about sheet handlingSpecifications
| Model | LGS 3015 | LGS 4020 |
|---|---|---|
| Sheet material | Carbon steel, stainless steel | Carbon steel, stainless steel |
| Max. sheet size | 3000 x 1500 mm | 4000 x 2000 mm |
| Min. sheet size | 1200 x 1000 mm | 1200 x 1000 mm |
| Max. sheet weight | 500 kg | 500 kg |
| Exchange cart load per deck | 3 t | 3 t |
Guarding around the handling area is specified to the installation and supplied to Australian workplace safety requirements. Sheet formats and cart configuration are confirmed against the laser model at quotation.
Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
Installed and Supported in Australia
IMS imports direct from the factory and looks after the machine from delivery on.
- Installation and commissioning by IMS technicians
- Operator training on site
- Guarding to Australian workplace safety requirements
- Spare parts and consumables held in Australia
- Service and breakdown support from factory-trained technicians
