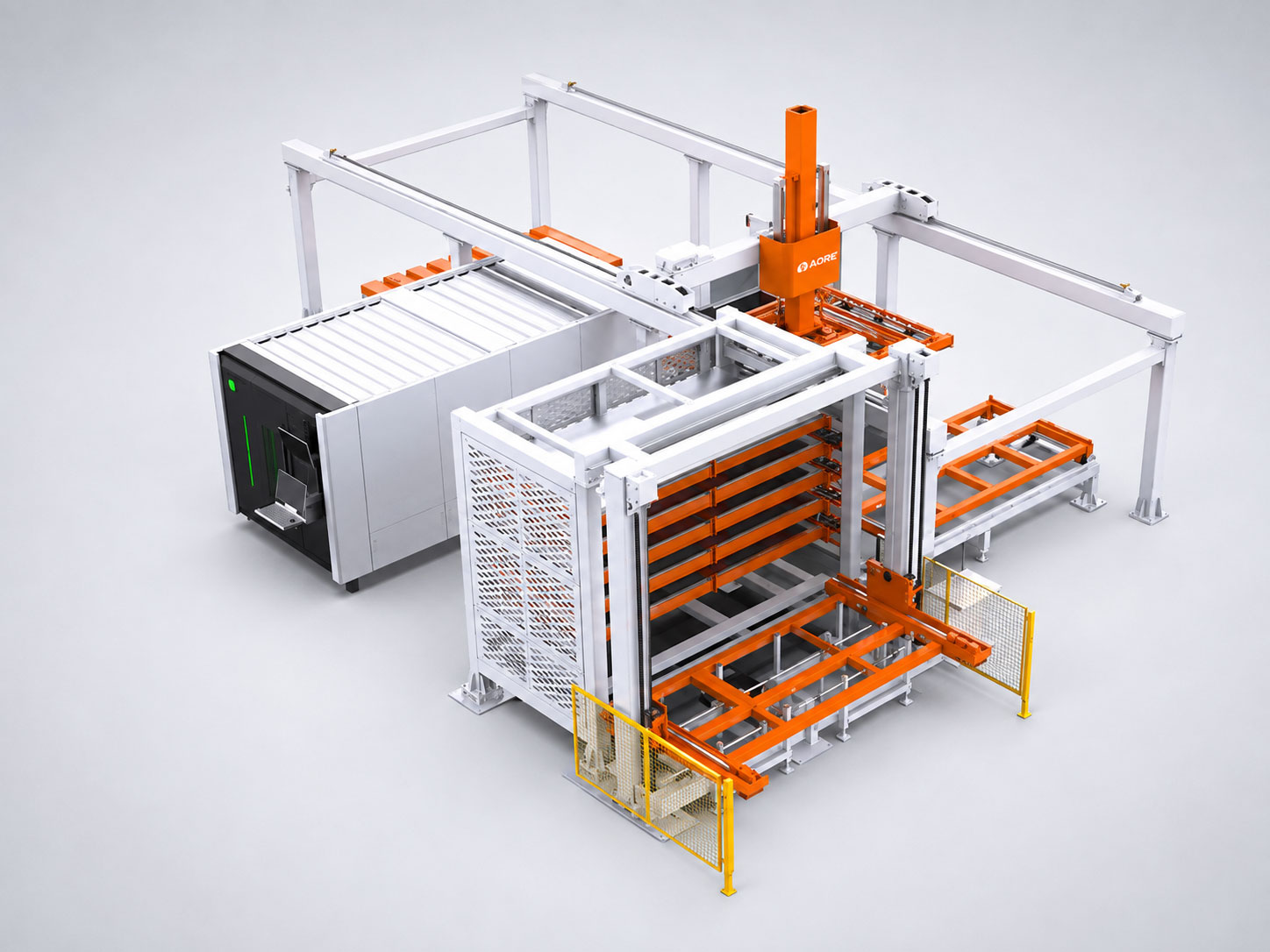

AORE LGD+RW Automated Sheet Storage and Laser Loading System
- Vertical storage
- Automatic retrieval
- Direct laser loading
- Modular
The LGD+RW stores multiple materials beside the laser and retrieves and loads the sheet called for by the job, without forklift movement across the floor.
Sheet handling becomes a stock control function rather than a lifting task.
Key features
The sheet you need, when you need it
The system selects the storage level and delivers material to the laser according to the production schedule. Frequently used sheet is held beside the machine and forklift trips are removed from the day.
Modular storage to suit your space
The tower and loading system are configured to sheet formats, number of storage levels and the shape of the workshop. Vertical storage adds material capacity without the floor area required by ground-level stacks.
Monitored material movement
Sensors and interlocks monitor sheet movement between storage, the loading system and the laser. The guarded area and access control are designed to the installation and supplied to Australian workplace safety requirements.
How much sheet are you moving to keep one laser fed?
Automated storage is specified where forklift movements and material location are costing more than floor space. Configuration is determined from materials held, number of grades and thicknesses, and the current loading method.
Talk to us about sheet storageSpecifications
| Model | LGD3015-1000+RW3015-8 | LGD6020-2000+RW6020-8 |
|---|---|---|
| Storage layers | 8 | 8 |
| Maximum sheet size | 3000 x 1500 mm | 6000 x 2000 mm |
| Minimum sheet size | 1500 x 1000 mm | 2000 x 1000 mm |
| Maximum load per sheet | 1000 kg | 2000 kg |
| Sheet thickness | 0.8 to 25 mm | 1 to 20 mm |
| Compatible AORE lasers | PG, PU and H 3015 | PG, PU and H 6020 |
Storage towers of 6, 8 or 10 layers and a 4020 size are also available. Layer count and layout are confirmed at quotation.
Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
Video
Installed and Supported in Australia
IMS imports direct from the factory and looks after the machine from delivery on.
- Installation and commissioning by IMS technicians
- Operator training on site
- Guarding to Australian workplace safety requirements
- Spare parts and consumables held in Australia
- Service and breakdown support from factory-trained technicians
