AORE LCA Pneumatic Cantilever Sheet Loading Arm
- Sheet size 3x1.5m or 4x2m
- Max sheet weight 500kg
- 220 degrees

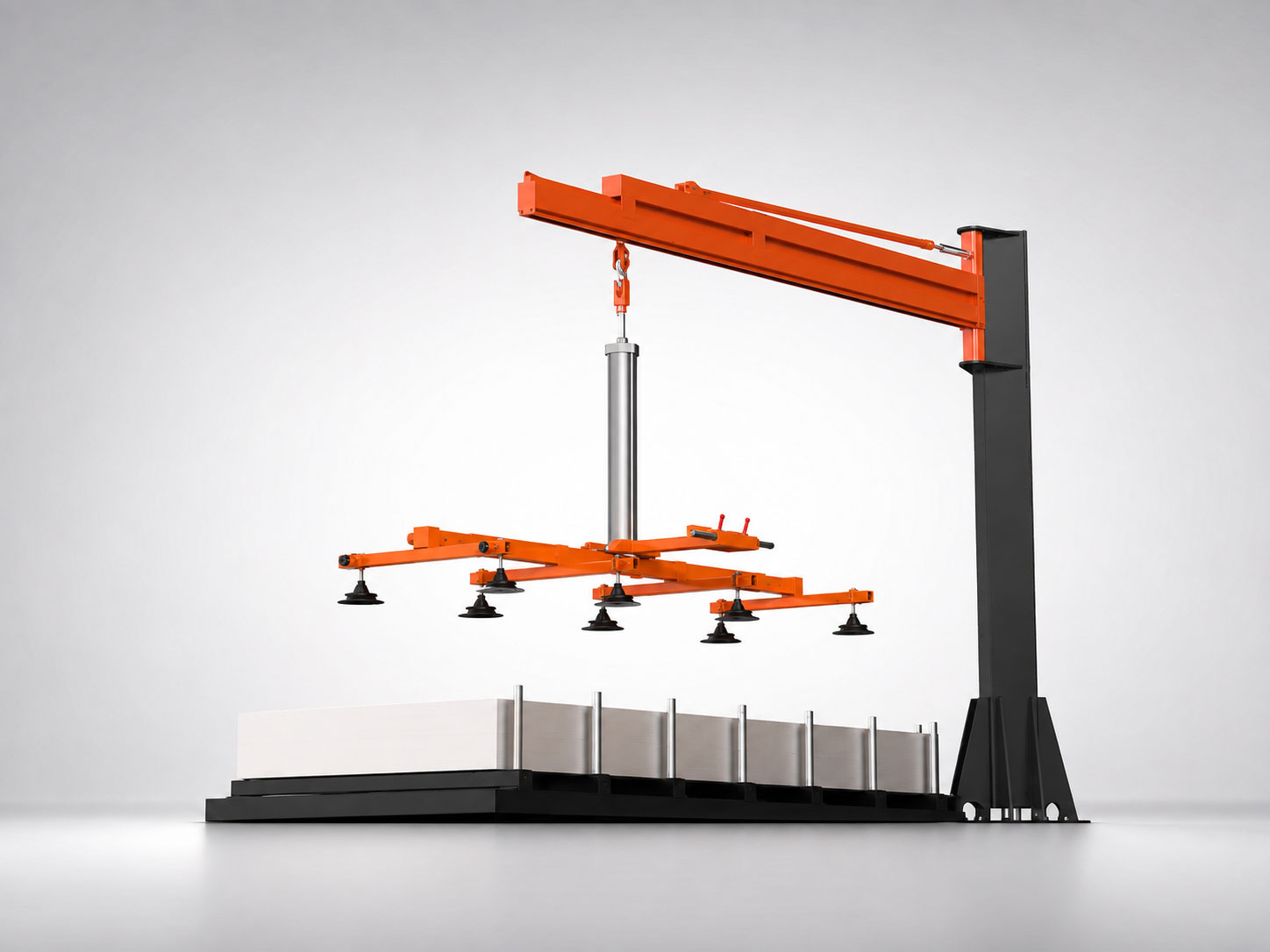

The LCA is a pneumatic cantilever loading arm with vacuum lifting that assists the operator in placing sheet on the laser table.
It is the step up from crane or manual loading for a workshop that does not require a full storage and retrieval system.
Key features
Vacuum lifting instead of manhandling
Vacuum lifters pick the sheet and assist the operator in placing it accurately on the table. Physical handling is reduced and loading becomes a repeatable action independent of the operator on shift.
Compact cantilever, less floor space
A single-column cantilever occupies less floor area than a full gantry and leaves the loading area open. Fewer moving parts reduce inspection and maintenance requirements.
Configurable for different sheet lasers
The lifting frame is configured to different sheet sizes and AORE laser models. It suits a varied sheet workload rather than a single format.
Is a loading arm enough, or do you need more?
A cantilever arm is specified for workshops loading a small number of sheets per hour. Above that rate a full loading system or storage tower is the appropriate specification, determined from the current loading method.
Talk to us about sheet loadingSpecifications
| Model | LCA 3015 | LCA 4020 |
|---|---|---|
| Applicable Sheet Material | Carbon Steel/Stainless Steel/aluminum plate | Carbon Steel/Stainless Steel/aluminum plate |
| Max Feeding Sheet Size | 3000mm x1500 mm | 4000mm x 2000mm |
| Min Feeding Sheet Size | 1200mm x1000 mm | 1200mm x 1000mm |
| Max Feeding Sheet Weight | 500 kg | 500 kg |
| Rotation Angle | 220° | 220° |
Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
Installed and Supported in Australia
IMS imports direct from the factory and looks after the machine from delivery on.
- Installation and commissioning by IMS technicians
- Operator training on site
- Guarding to Australian workplace safety requirements
- Spare parts and consumables held in Australia
- Service and breakdown support from factory-trained technicians
