Daito NA700 Automatic Pack Cutting Bandsaw
Fully automatic structural and pack / bundle cutting bandsaw.
- 700 × 600 mm capacity
- pack and bundle cutting
- fully automatic

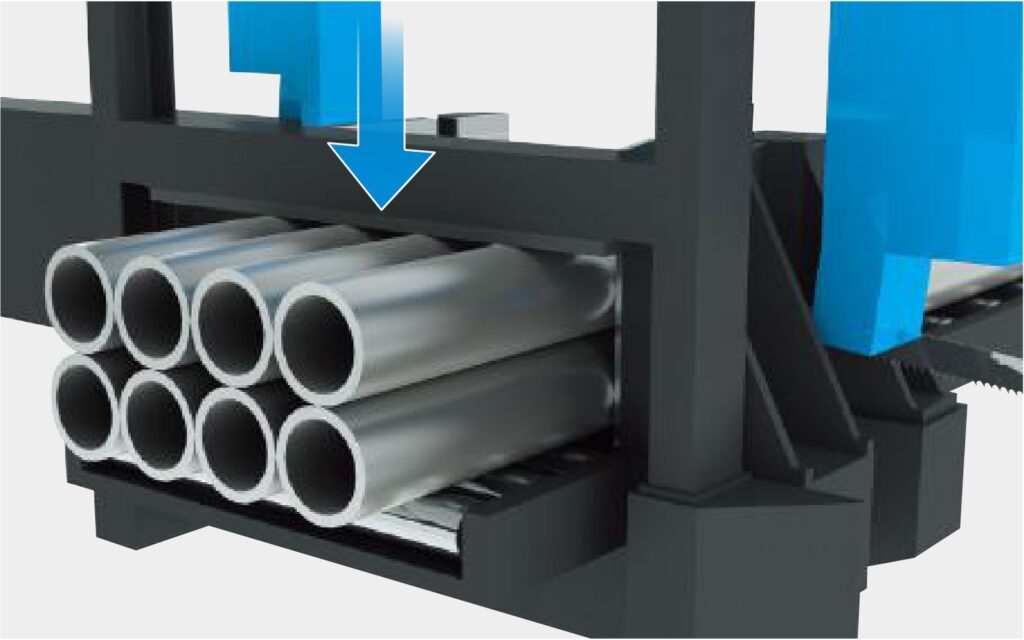

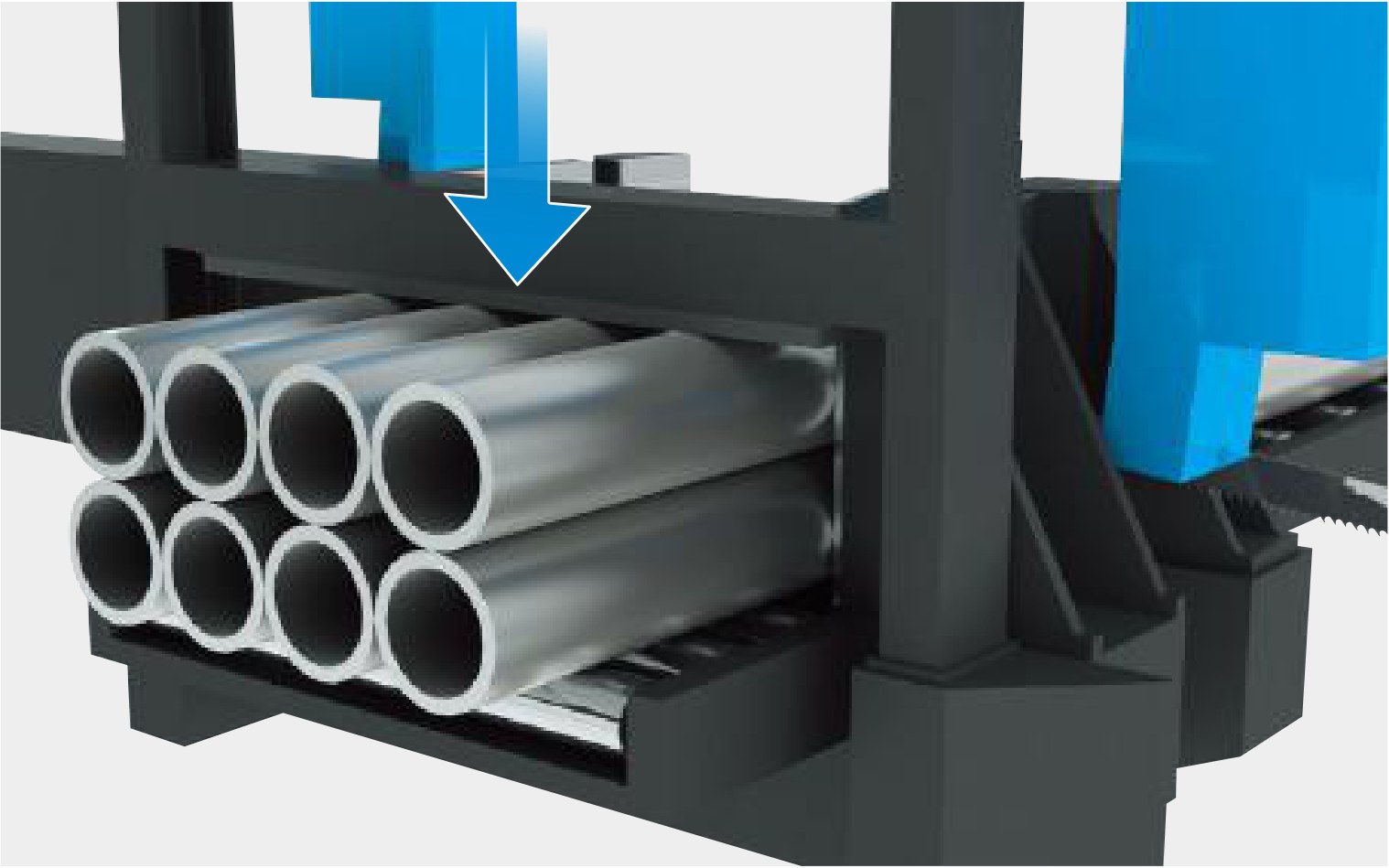

The Daito NA700 is a fully automatic bandsaw purpose-built for high-volume cutting of bundled pipe, tube, angle, flat bar and other profiles. Its yoke-type vertical vices secure the full width of the pack, while the index vice provides an 800 mm shuttle stroke, or 3000 mm as an option, for accurate automatic feeding.
It is designed for steel merchants, tube processors and manufacturers that need to cut complete bundles efficiently using programmed lengths and quantities.
Key features
800 mm Shuttle Feed, 3000 mm Optional
The index vice provides an 800 mm shuttle stroke for accurate automatic positioning during bundle cutting, with longer lengths produced through repeated indexing. A 3000 mm shuttle stroke is available as an option for longer cut lengths.
800 mm Shuttle Feed
The index vice provides an 800 mm shuttle stroke for accurate automatic positioning during bundle cutting. Longer cut lengths are produced through repeated indexing under machine control.
Material Feeding Without Surface Rubbing
During material feeding, the index, main and front vices open from both sides. This reduces unnecessary contact with the material and helps minimise surface marking.
8° Saw Frame with Larger Band Wheels
The saw frame is set at 8°, allowing the blade to enter the pack progressively. Band wheels enlarged by 13 percent support blade stability, cutting accuracy and blade life.
Vice-Linked Saw Guide
An optical detector finds the top of the material, so the blade does not descend through air before reaching the pack. With no contact parts, there is nothing to wear or adjust.
Material Top Detector
A non-contact optical detector identifies the top surface of the material before cutting. Compared with a mechanical detector, it needs less routine adjustment and has no contacting sensor subject to wear.

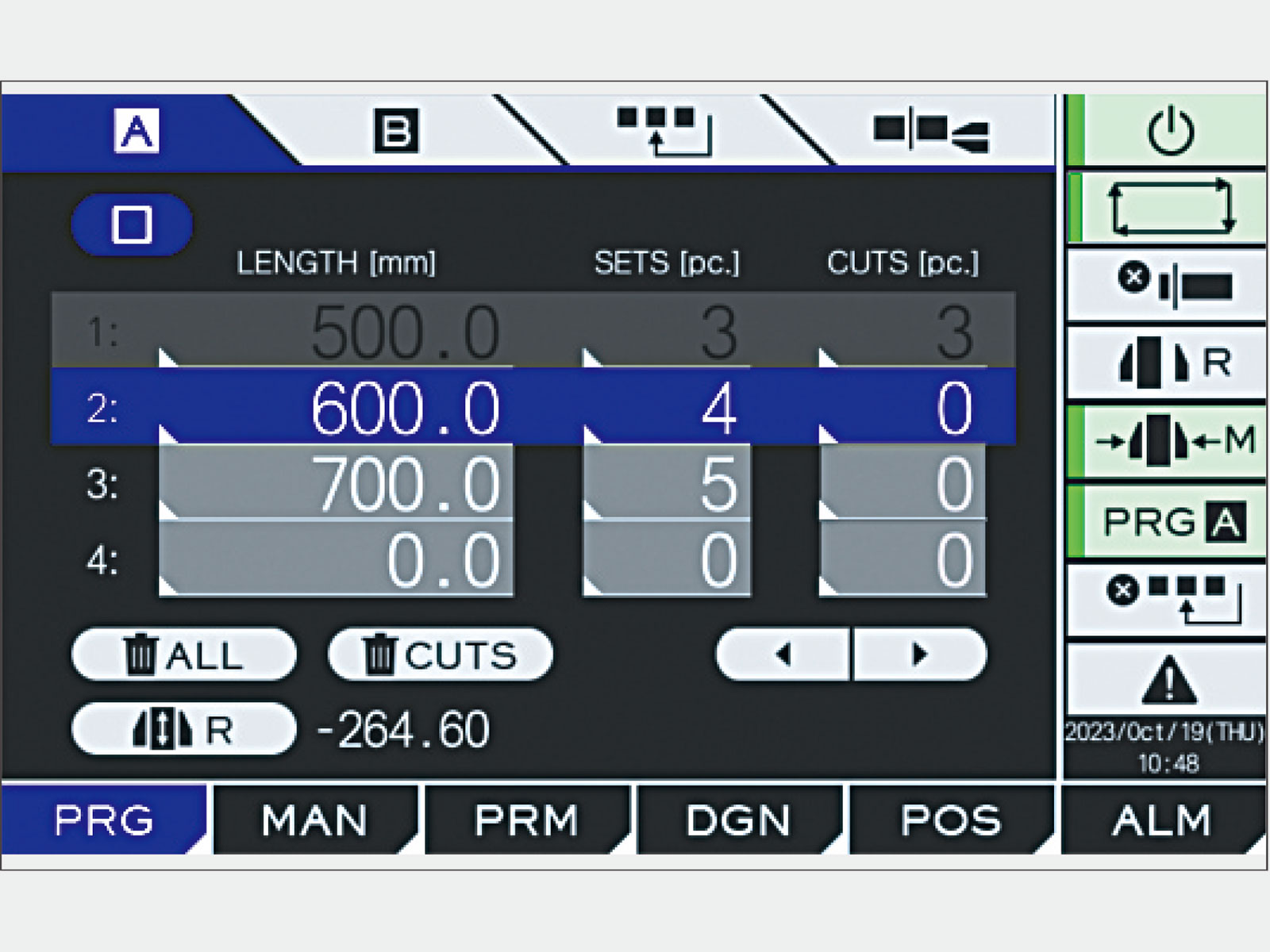

Programmed Lengths and Quantities
Cut lengths, sets and quantities are entered on the LCD touch panel, and the next program can be entered while the machine is cutting. Bundles are cut to the programmed schedule without re-entering data between jobs.
More features
- Vice pressure regulator for thin-wall tube and light sections
- Light-beam cut-line marker
- Roller indexing table for bundle feeding
- Raker-type chip conveyor with fluid return to the reservoir
Options
- 3000 mm shuttle stroke
- Mist applicator
- Blade deviation detector
- Front vertical vice
- Rear vertical roller
Why fabricators choose Daito
- Made in Japan. Daito-Seiki designs and builds its machines in Japan, and it shows in the machining, the fit and the electrical work.
- Reliability. Daito machines are built for continuous production, with long periods between faults and less unplanned downtime over the life of the machine.
- Straightforward to run. Operators are productive in days, not weeks. The control is simple and does what the job needs.
- Built around the operator. Design decisions are made for the person running the machine, not for the brochure.
Specifications
| Model | NA700 |
| Maximum rectangular capacity (W x H) | 700 x 600 mm |
| Maximum square capacity | 600 x 600 mm |
| Maximum round capacity | 660 mm |
| Additional profile capacity | 700 x 370 mm |
| Shuttle feeding stroke | 800 mm standard, 3000 mm optional |
| Machine dimensions (W x D x H) | 3658 x 2518 x 2745 mm |
| Machine weight | 5100 kg |
| Operation | Fully automatic |
| Machine type | Automatic pack and bundle cutting bandsaw |
Capacity and options are confirmed against the sections and bundle sizes at quotation. Guarding is supplied to Australian workplace safety requirements as standard. A transformer to suit Australian three-phase supply is supplied with the machine. IMS holds Daito parts in Australia and services the machine with its own technicians.
Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
Video
Installed and Supported in Australia
IMS imports direct from the factory and looks after the machine from delivery on.
- Installation and commissioning by IMS technicians
- Operator training on site
- Guarding to Australian workplace safety requirements
- Spare parts and consumables held in Australia
- Service and breakdown support from factory-trained technicians
