Cosen C-780FNC Automatic Pack Cutting Bandsaw
Automatic bandsaw for structural, pack and bundle cutting.
- Capacity 550 x 780mm | Automatic Fully Programmable | Twin Column
The Cosen C-780FNC is a fully automatic dual-column horizontal bandsaw for high-volume cutting of structural steel and long stock. It cuts round and square material up to 550 mm and rectangular sections up to 550 x 780 mm, with a 5° canted saw frame giving the blade progressive entry into beam, channel, RHS, tube and solid material.
The standard machine uses a 600 mm hydraulic shuttle, with automatic multiple indexing for longer cut lengths. The C-780FNC-3L adds a servo-controlled 3000 mm single-stroke shuttle with an integrated roller-feed bed, and optional front and rear hydraulic top clamps secure bundles from above for pack cutting.
Key features
5° Canted Frame on Oversized Dual Columns
The saw frame is inclined at 5°, so the blade enters structural sections progressively instead of meeting the full width at once, reducing initial tooth loading on beam, channel, RHS and tube. The heavy frame travels on oversized dual columns for stable, controlled feed through wide sections and packs.
10-Inch HMI Touchscreen Control
Cosen Smart Touchscreen Control stores up to 100 cutting jobs by length and quantity. It automatically compensates for kerf loss and calculates the required indexing cycles, allowing an entered cut list to run automatically without manual stroke calculations.

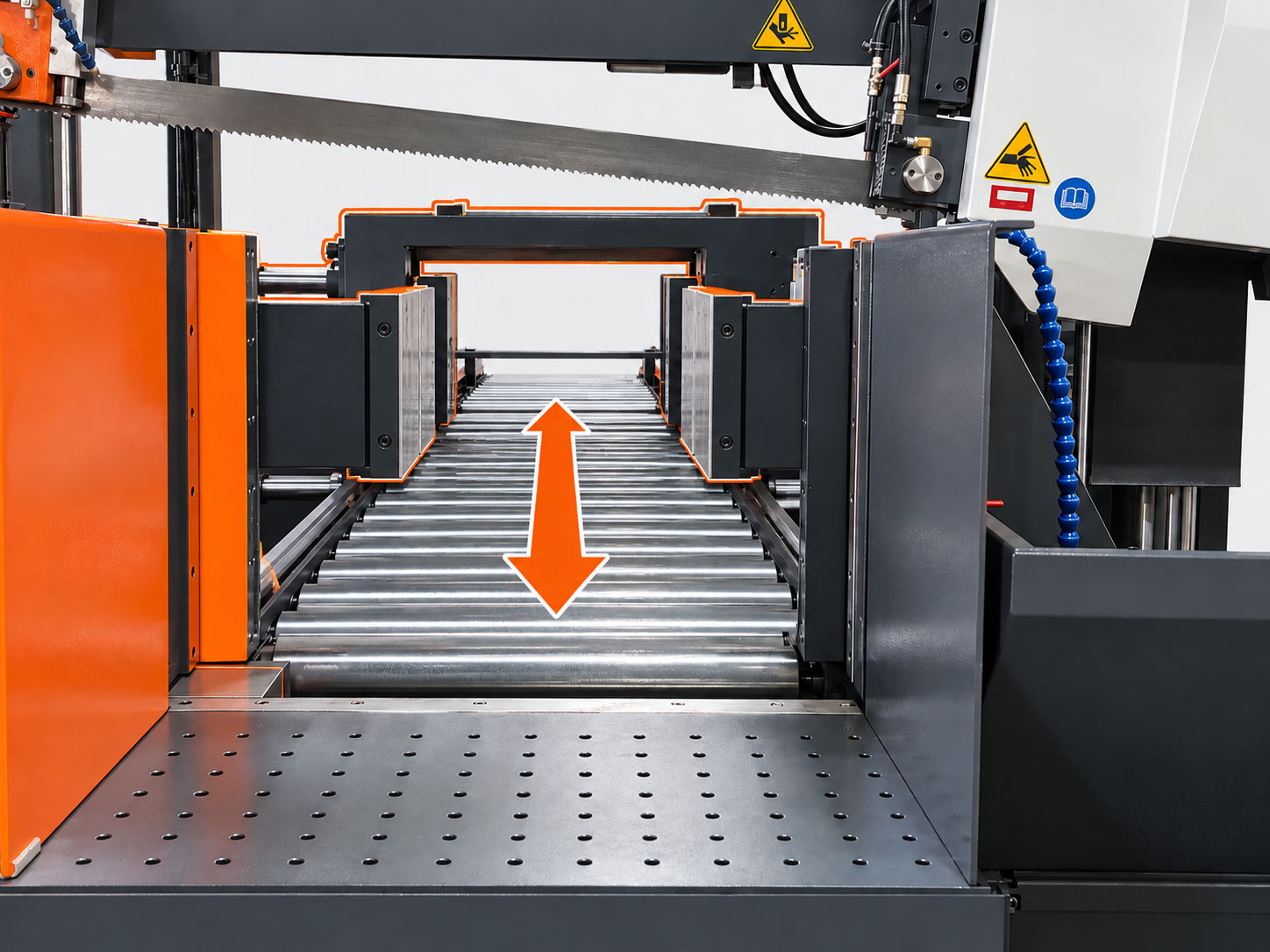

Automatic Multiple Indexing
The hydraulic shuttle vice repeatedly indexes material for cut lengths beyond its single stroke. The control calculates each feed cycle automatically, allowing long components to be produced from one programmed length.

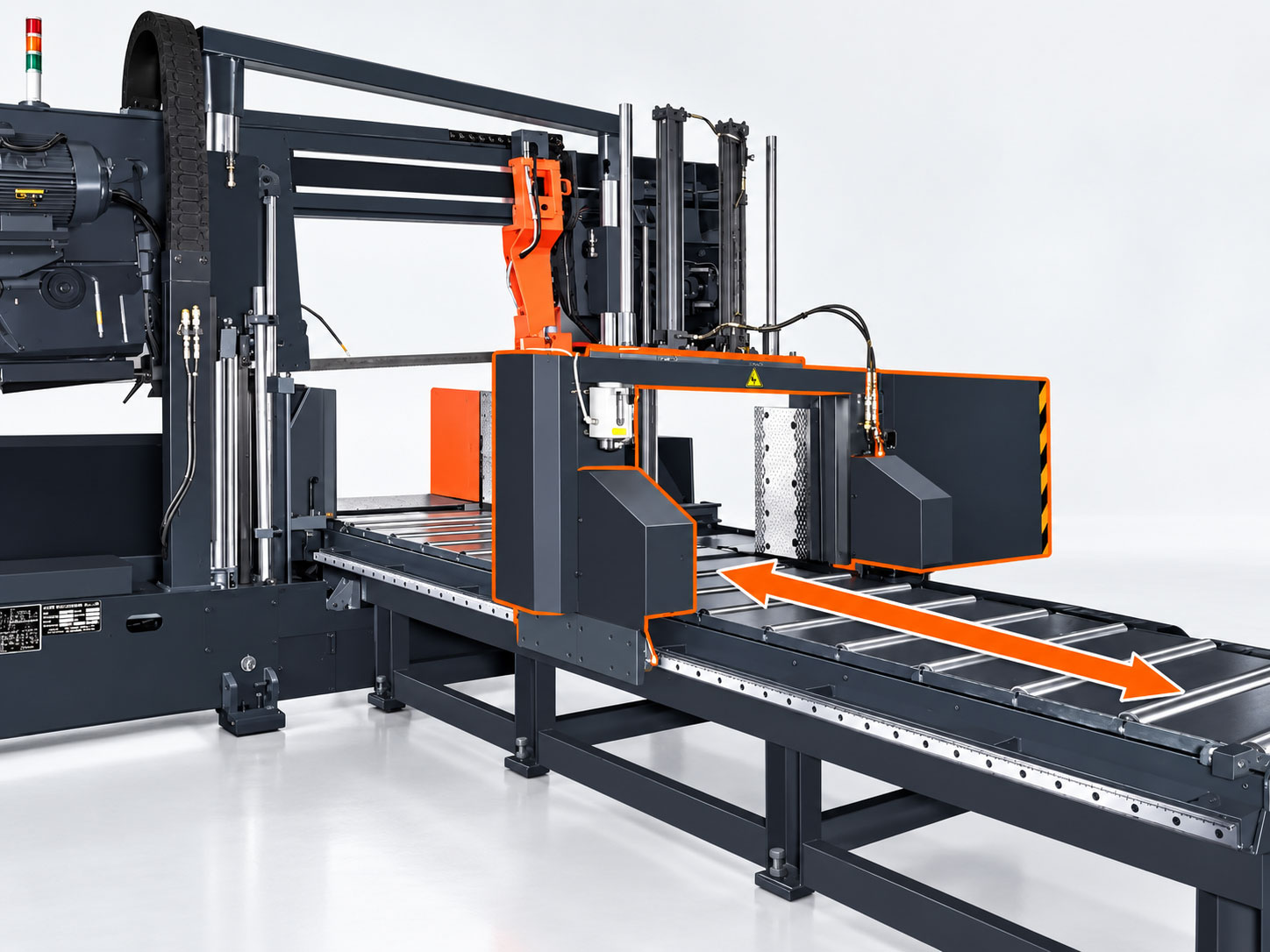

3 m Servo Shuttle with Roller-Feed Bed (C-780FNC-3L)
The C-780FNC-3L replaces the standard hydraulic feed with a servo-controlled 3000 mm single-stroke shuttle, positioning components up to 3 m in one movement. An integrated roller-feed bed supports and advances long stock and packs through the full stroke.
Optional Hydraulic Top Clamps for Pack Cutting
Optional front and rear hydraulic top clamps hold bundled material from above while the side vices secure it laterally. This prevents tube, RHS and bar from shifting during the cut and allows multiple pieces to be processed in one cycle.
More features
- 7.5 kW blade motor driving a 7200 x 54 x 1.6 mm blade
- Hydraulic blade tension with automatic blade-breakage detection
- Interchangeable tungsten-carbide blade guides with bearing pre-alignment
- Adjustable cast-iron guide arm to keep blade support close to the workpiece
Options
- Front and rear hydraulic top clamps for pack cutting
- C-780FNC-3L with 3000 mm servo shuttle and roller-feed bed
Is the Cosen C-780FNC right for your workshop?
The C-780FNC suits steel merchants, processors and structural fabricators that automatically cut long lengths of beam, channel, RHS, tube and solid material within a 550 x 780 mm capacity. Specify the optional hydraulic top clamps when pack cutting is required, and the C-780FNC-3L when longer cut lengths make a 3 m single-stroke feed worthwhile. For automatic mitre cutting, consider the Cosen M8 CNC double-mitre bandsaw.
Talk to a specialistSpecifications
| Model | C-780FNC | C-780FNC-3L |
|---|---|---|
| Round capacity | 550 mm | 580 mm |
| Square capacity | 550 mm | 550 mm |
| Rectangular capacity (H x W) | 550 x 780 mm | 550 x 780 mm |
| Blade cant | 5 degrees | 5 degrees |
| Pack cutting, front top clamp (H x W) | 20 to 701 x 40 to 725 mm | 20 to 701 x 40 to 725 mm |
| Pack cutting, rear top clamp (H x W) | 0 to 562 x 0 to 780 mm | 0 to 562 x 0 to 780 mm |
| Blade size (L x W x T) | 7200 x 54 x 1.6 mm | 7200 x 54 x 1.6 mm |
| Blade motor | 7.5 kW (10 HP) | 7.5 kW (10 HP) |
| Blade tension | Hydraulic | Hydraulic |
| Feed | Hydraulic shuttle vice, NC automatic | Servo shuttle, NC automatic |
| Single feed stroke | 600 mm | 3000 mm |
| Multiple indexing | to 99 m | to 99 m |
| Workbed height | 600 mm | 600 mm |
| Weight | 4822 kg | 5476 kg |
| Floor space (L x W x H) | 2798 x 4096 x 2584 mm | 4695 x 4106 x 2605 mm |
Model, shuttle length and clamping are confirmed against the sections, cut lengths and pack sizes at quotation. Guarding is supplied to Australian workplace safety requirements as standard. IMS holds Cosen parts and bandsaw blades in Australia and services the machine with its own technicians.
Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
