Accurl IW100T Hydraulic Ironworker
Universal punch and shear ironworker, 90T / 100T
- 90T / 100T
- Punch, angle shear, flat shear, round and square bar shear, notch
- Hydraulic
- Two foot pedals, hands-free operation
A universal ironworker that punches, shears and notches from one hydraulic machine — punch station, angle shear, flat shear, round and square bar shear, and a notch station. It suits a workshop doing all of those jobs in small volumes that would rather not buy, power and find floor space for a separate machine for each. Supplied with a set of punch and dies, two foot pedals for hands-free operation, rapid height and depth settings, and stops on the work tables for repeat positioning.
About this machine
A universal ironworker puts five stations on one hydraulic power pack: a punch station, angle shear, flat shear, round and square bar shear, and a notch station. One footprint, one power connection, and no shifting material between machines for the smaller jobs.
Supplied with
- A set of punch and dies
- Two foot pedals, so both hands stay on the material
- Rapid height and depth settings for quick changes between jobs
- Stops on the work tables for repeat positioning
Optional tooling
Worth specifying up front if you know the work is coming, rather than retrofitting later.
- Channel shear cuts channel to length
- I-beam shear shears I-beam for structural work
- T-bar shear cuts T-bar to size
- Press brake adds bending to the same machine
- Angle bending forms angle without a separate press
- Pipe notching notches pipe for fabrication and handrail work
Both units are in stock in Australia and available to inspect. IMS imports the machine, so the people who quote it are the people who deliver it and come back to service it, with tooling and common spare parts held here.
Specifications
| Model | IW100T |
| Capacity | 90T / 100T |
| Stations | Punch, angle shear, flat shear, round and square bar shear, notch |
| Drive | Hydraulic |
| Control | Two foot pedals, hands-free operation |
| Settings | Rapid height and depth adjustment |
| Work tables | Stops for repeat positioning |
| Supplied with | Set of punch and dies |
| Origin | China |
Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.

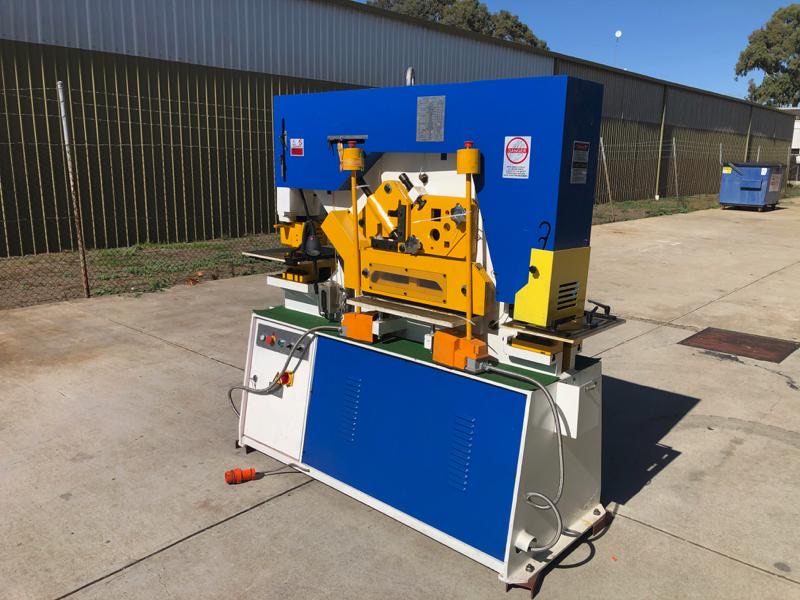

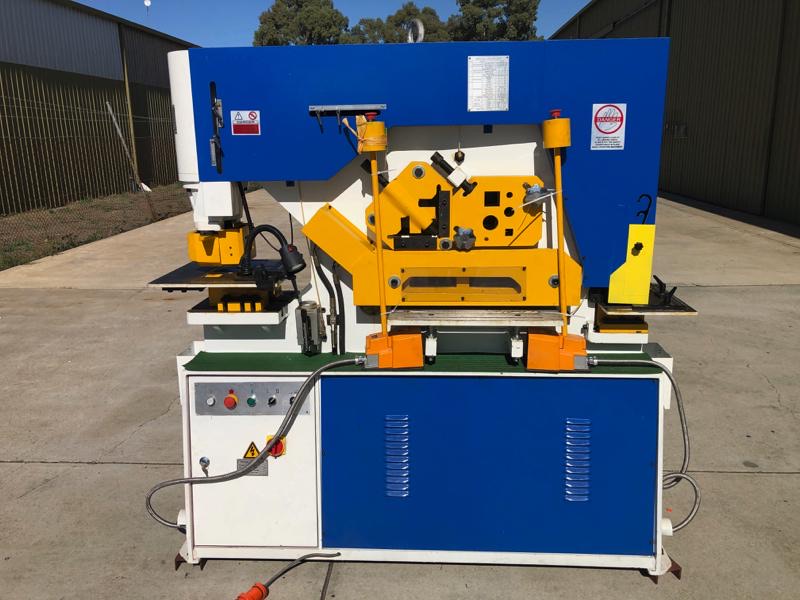

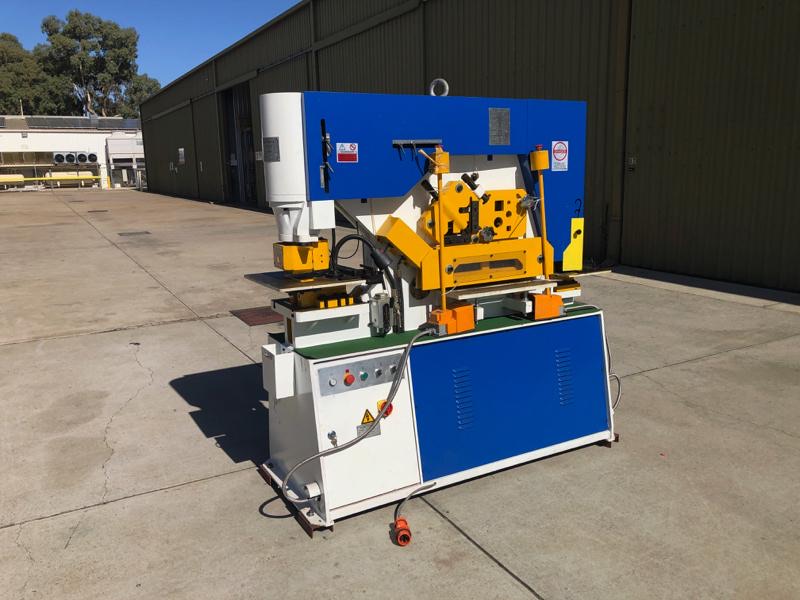

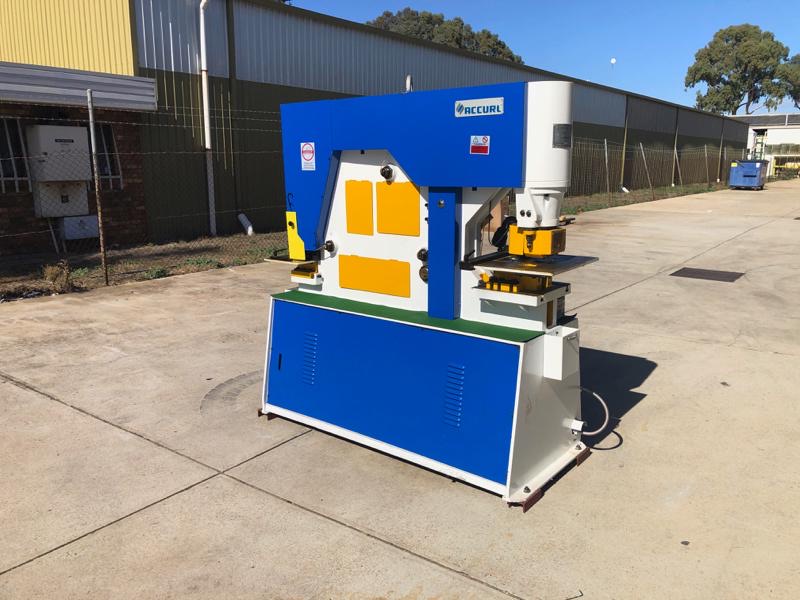

Gallery
Installed and Supported in Australia
IMS imports direct from the factory and looks after the machine from delivery on.
- Installation and commissioning by IMS technicians
- Operator training on site
- Guarding to Australian workplace safety requirements
- Spare parts and consumables held in Australia
- Service and breakdown support from factory-trained technicians
